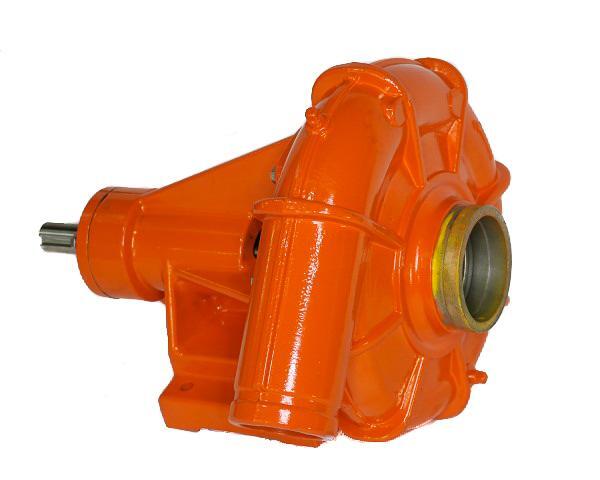

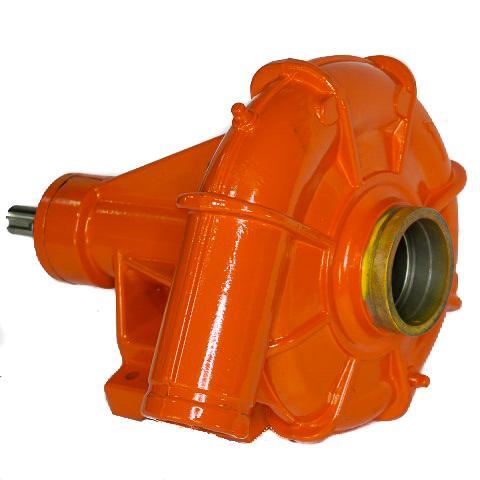

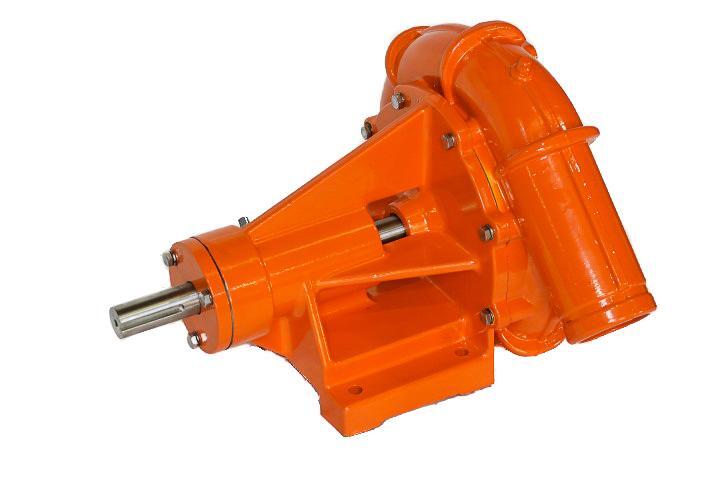

Aluminium Bare Shaft Water Pump 100 x 80mm - CW or CCW Rotation-Clockwise Rotation (CW)

PART #: P100-080-AL-CW

$2,357.30
In Stock
Rotation

ROTATION

Clockwise or Counterclockwise Rotation - Please select when adding to cart

PLEASE NOTE:

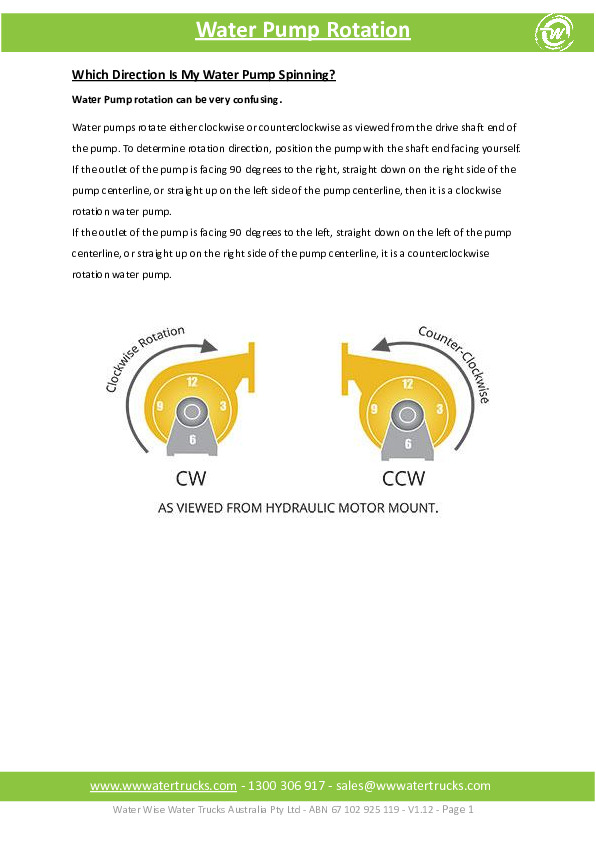

Which direction is my pump spinning?
Water pumps rotate either clockwise or counterclockwise as viewed from the drive shaft end of the pump. To determine rotation direction position the pump with the shaft end facing yourself. If the outlet of the pump is facing 90 degrees to the right, straight down on the right side of the pump centerline, or straight up on the left side of the pump centerline, then it is a clockwise rotation pump.
If the outlet of the pump is facing 90 degrees to the left, straight down on the left of the pump centerline, or straight up on the right side of the pump centerline, it is a counterclockwise pump.

FEATURES

  • 100mm (4") x 80mm (3") Grooved Ends

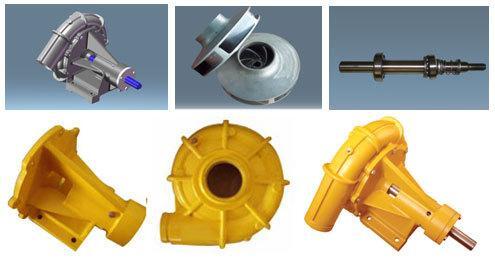

  • Aluminium Body & Impeller,
  • Stainless Steel Shaft
  • Mechanical Seal
SHIPPING

Dimensions: 0.560m (w) x 0.470m (l) x 0.470m (h)

Cubic: 0.1237m3

Weight: 29kg



(aluminium-bare-shaft-wate)

SKU aluminium-bare-shaft-wate
Brand Water Wise Truck Parts
Shipping Weight 30.0000kg
