B4J-S Mech Seal Pump (Flange) Hydraulic Water Pump, 4300L/min

PART #: B4J-S-B69743

Flange Inlet & Outlet - Clockwise Rotation

$7,837.50
In Stock

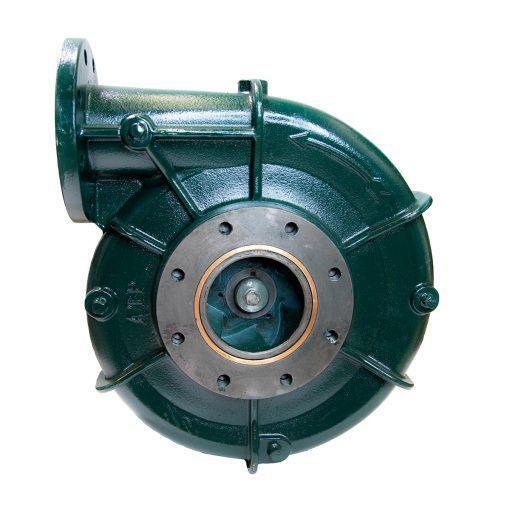

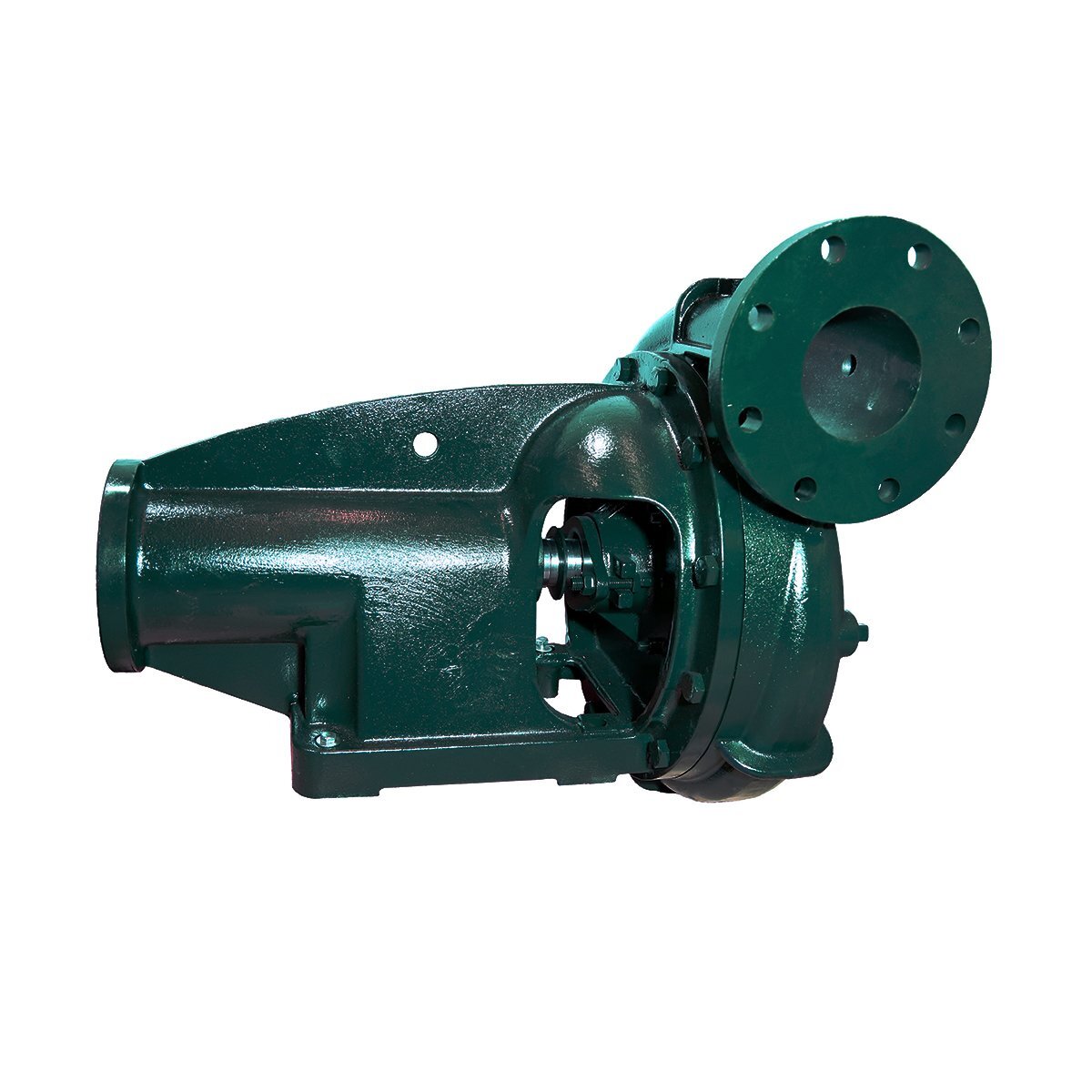

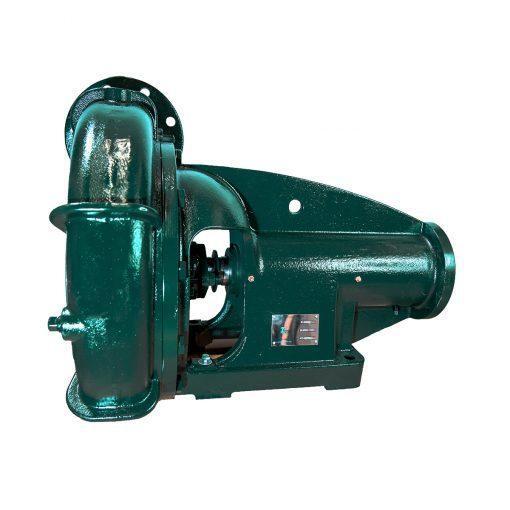

The ATP B4J-S Clockwise (CW), Mechanical Seal pump is a high pressure, Hydraulically driven, 5” x 4” Flanged water pump with a 13.5” Impeller. This pump is driven directly by an SAE C Mount, 1 1⁄4” 14 teeth Splined Shaft hydraulic motor coupled to the water pump shaft via a shaft coupling. When operating at 2,500 RPM this pump is capable of 1,150 GPM at 208 PSI and is primarily used on Off-Road, larger mine tank equipment.

This ATP Water Pump is a direct replacement for the Berkeley Pump B4 Mega (B69743) and may be black in colour

Note: This pump does not include the hydraulic motor.



SHIPPING

Dimensions: 0.570m (w) x 0.750m (l) x 0.720m (h)
Weight: 140kg
Cubic: 0.307800000m3

(B4J-S-B69743)

SKU B4J-S-B69743
Brand Water Wise Truck Parts
Shipping Weight 140.0000kg
