Bertolini Type 80mm (3") - Air Actuated

PART #: SVINT-108

Bertolini Type 80mm (3") - Air Actuated

$339.90
Sold Out - Backorder Available

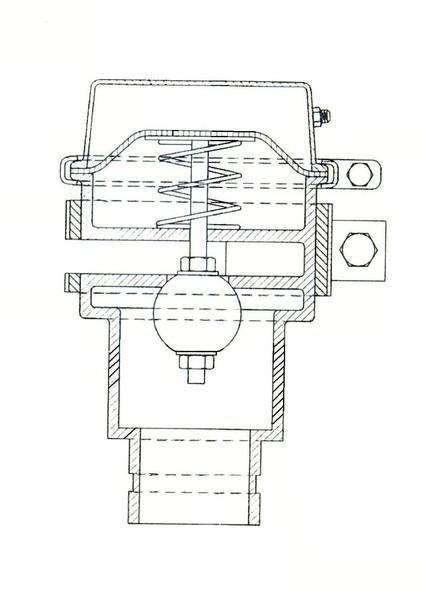

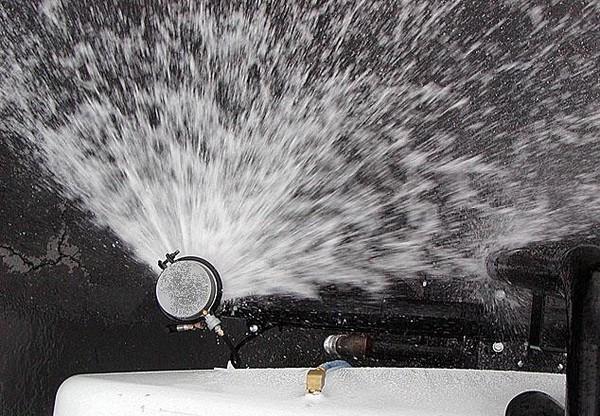

The SV3INT is cast from Marine grade alloy with an output capacity of up to 1000 litres per minute (265 US Gallons per minute) and provides a dense even spray discharge of up to 6.7 metres (22 feet) and a spray width of up to 11 metres (36 feet). Air pressure opens the valve while an internal spring closes the valve and eliminates the need for additional shut off valves.

THE BERTOLINI STYLE SPRAY VALVE IS THE ONLY SPRAY VALVE THAT IS NORMALLY CLOSED (REQUIRES AIR PRESSURE TO OPEN)

Contact us for bulk pricing.

FEATURES
  • Steel internals (shaft with flat washer and spring)
  • Grooved base (Roll groove coupling/clamping system)
  • Valve inlet port 3”
  • Adjustable spray ring to modify spray pattern
  • Fully serviceable (Complete Spare Parts Held In Stock)
SHIPPING

Dimensions: 0.180mm (w) x 0.240mm (l) x 0.240mm (h)
Weight: 4.5kg
Cubic: 0.010368m3

(SVINT-108)

SKU SVINT-108
Brand Water Wise Truck Parts
Shipping Weight 4.5000kg
