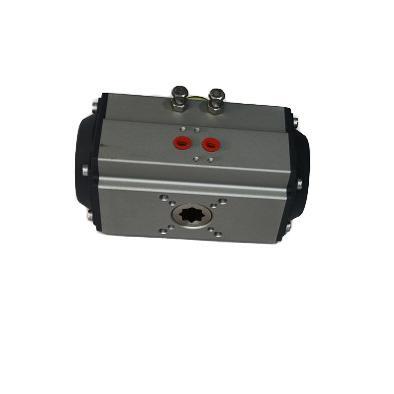

Butterfly Valve Actuator (Spring Return)-50mm (2")

PNEUMATIC SPRING RETURN (ONE WAY) ACTUATOR. ONE (1)  AIR LINE ONLY REQUIRED

Air actuated spring return butterfly valves are used in process automation environments and for controlling water flow on water trucks.

Heavy duty replacement actuator to suit spring return butterfly valves.

The butterfly valve is closed in its normal state and when air is supplied to the A port the valves opens. When air is released the valve automatically closes due to spring pressure.  Often called 'single acting or spring return' they only have one airline.

If you already have double-acting control lines you can simply connect the open line to the A port and the closed line to the B port.

FEATURES

• Size - 100mm (4"), 80mm (3"), 50mm (2") Table E
• Actuator Type - Air Open & Spring Close
• Open & Close Shaft Indicator
• Valve Seat - EPDM
• Port Size - 1/4 BSPT Female
• Max Actuator Pressure - 10 Bar (145psi)
• Number of Springs - 12
• Single Acting - One(1) airline
• 12 Month Warranty

DIMENSIONS

50mm (2")
0.170mm (w) x 0.150mm (l) x 0.250mm (h)
Weight: 4kg
Cubic: 0.m3

80mm (3")
0.170mm (w) x 0.150mm (l) x 0.250mm (h)
Weight: 4kg
Cubic: 0.m3

100mm (4")
0.100mm (w) x 0.100mm (l) x 0.150mm (h)
Weight: 4kg
Cubic: 0.m3
