Electric Over Air Control System - 4 Function - WIRELESS

PART #: CS110121SYS-WS-4

Electric Over Air Control Box 12V - 4 Function - WIRELES

$2,868.16
Sold Out - Backorder Available

The CS110121SYS-WS-4 is a complete 12V, 4 Function wireless control system.

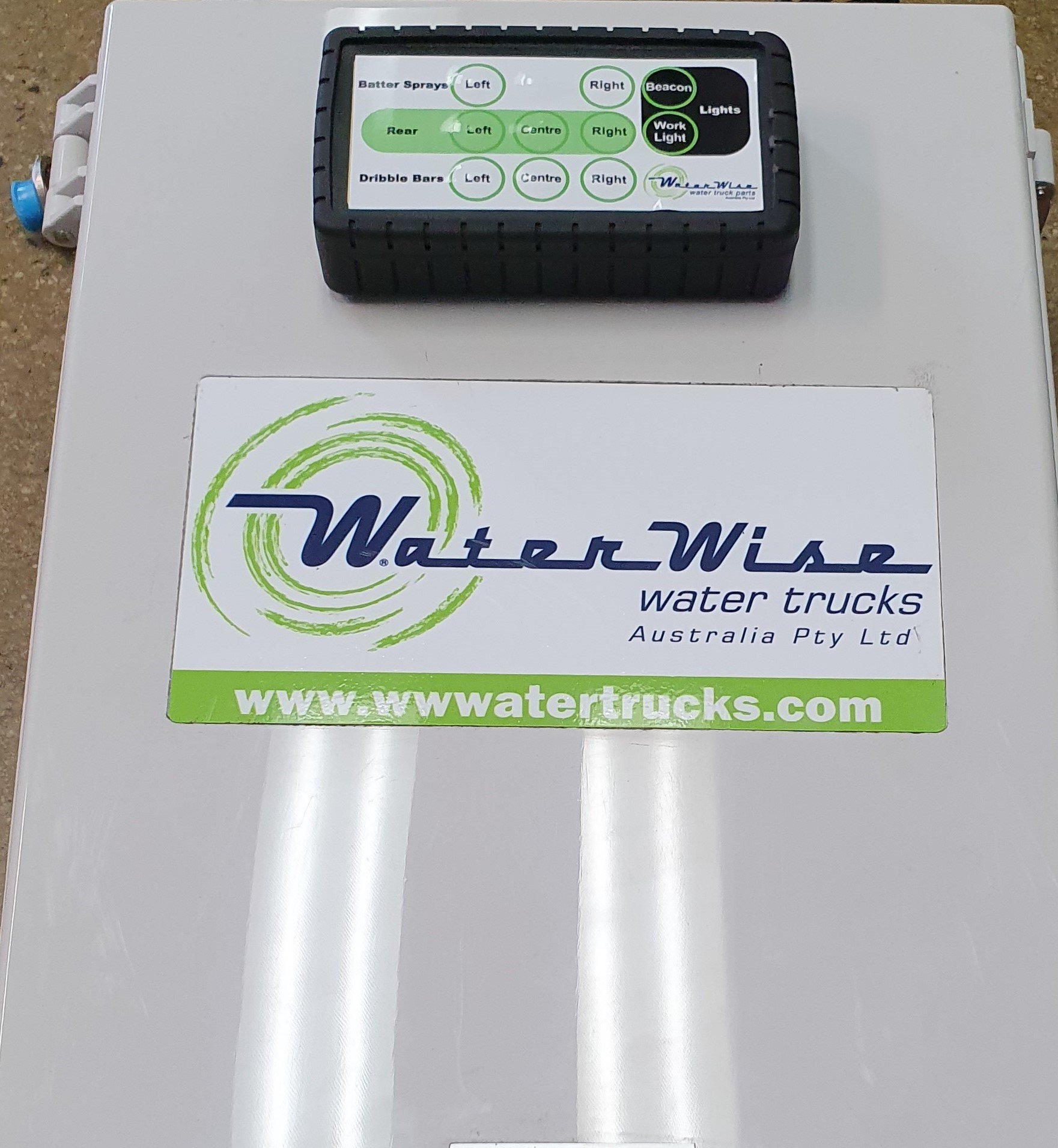

The in-cab handpiece is internally wired, while the four (4) solenoids are housed in an external weatherproof (IP65 rated) box that can be mounted on the tank.

Functions can be removed or added as required.

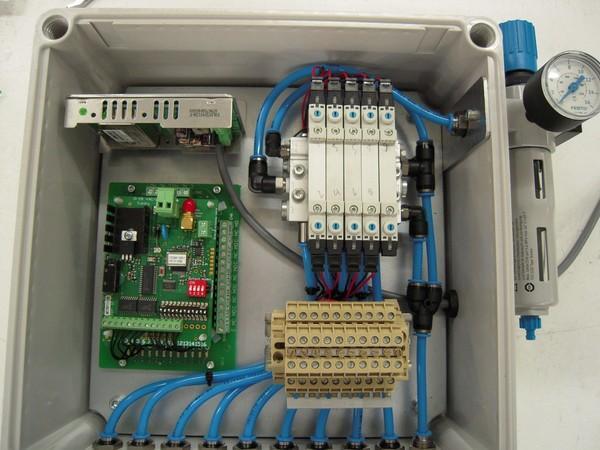

In-cab control box, electrical control cabinet with 4 x 12V solenoids mounted in weatherproof (IP65 rated) box, valve air fittings, bulkhead fittings, and internal air hose.

Electrical wiring (numbered and colour coded). Wiring and air schematic.

Four (4) Functions

  • Two (2) x Sprays - Normally Open (N/O) or 'One Way' (One Airline)
  • One (1) x Dribble Bar  - Normally Closed (N/C) or 'One Way' (One Airline)
  • One (1) x Spare -  Normally Closed (N/C) or 'One Way' (One Airline)
  • 6mm bulkheads to suit 6mm airline
  • CONFIGURATION CAN BE MODIFIED AS REQUIRED - CAN BE MADE TO ORDER - INCLUDING PETROL PUMP START (Refer Control System Requirement - Customer Selection Brochure)

SHIPPING

Dimensions: 0.400m (w) x 0.500m (l) x 0.200m (h)
Weight: 8kg
Cubic: 0.072m3

(CS110121SYS-WS-4)

SKU CS110121SYS-WS-4
Brand Water Wise Truck Parts
Shipping Weight 8.0000kg
