Electric over Air Control System - 6 Function - WIRELESS

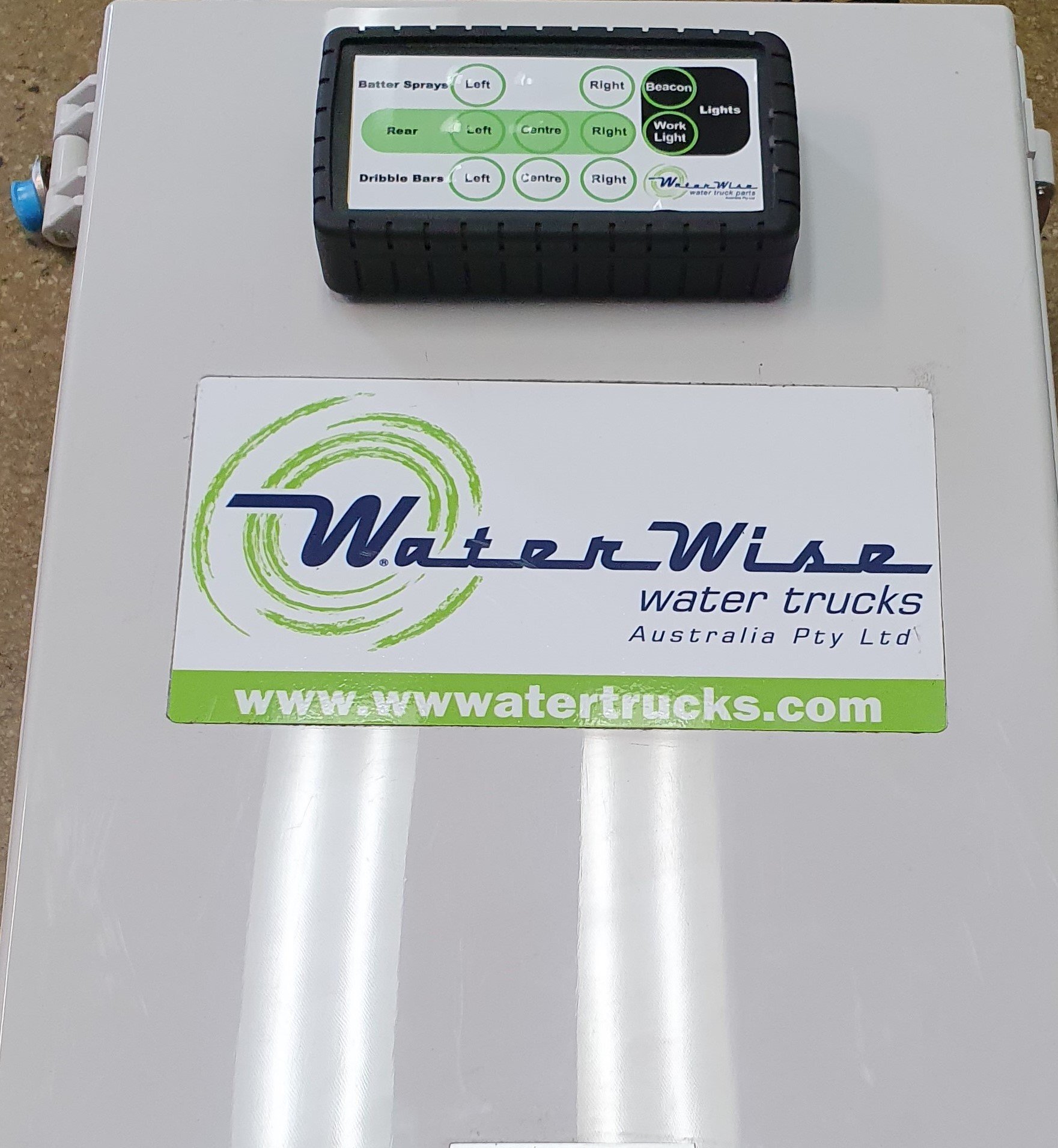

The CS110121SYS-WS-6  is a complete 12V wireless 6 Function control system. The in-cab control box/handpiece is internally wired with a 9V battery, while the solenoids are housed in an external weatherproof (IP65 rated) box that can be mounted on the tank. Functions can be removed or added as required.

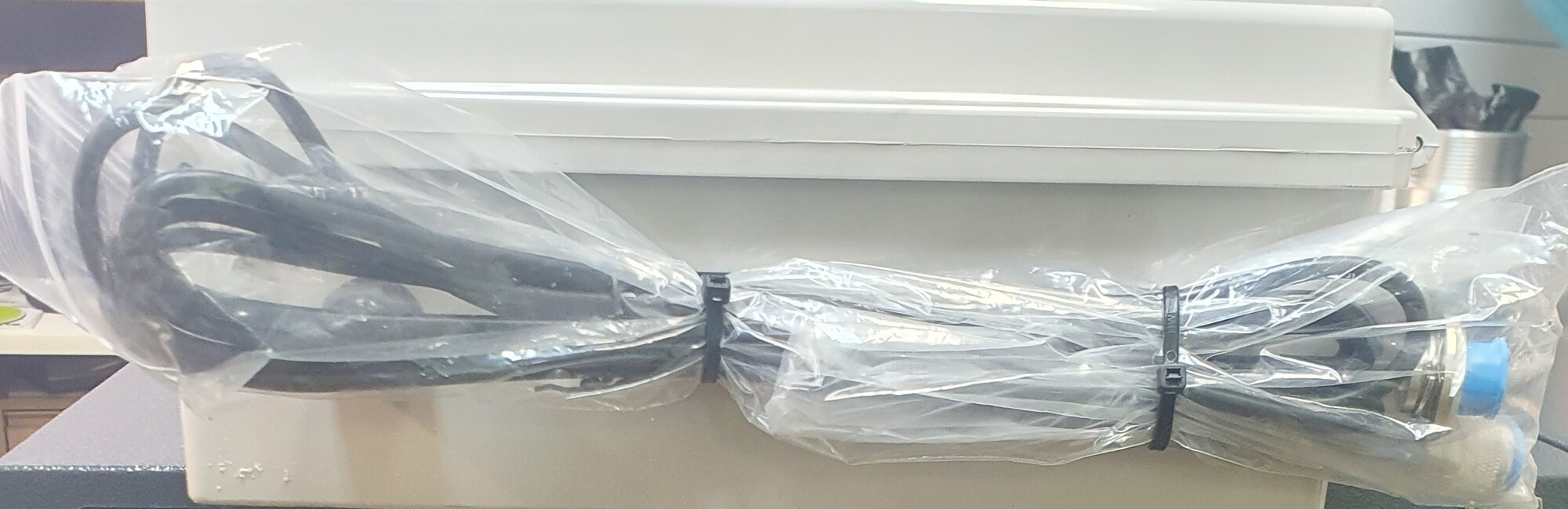

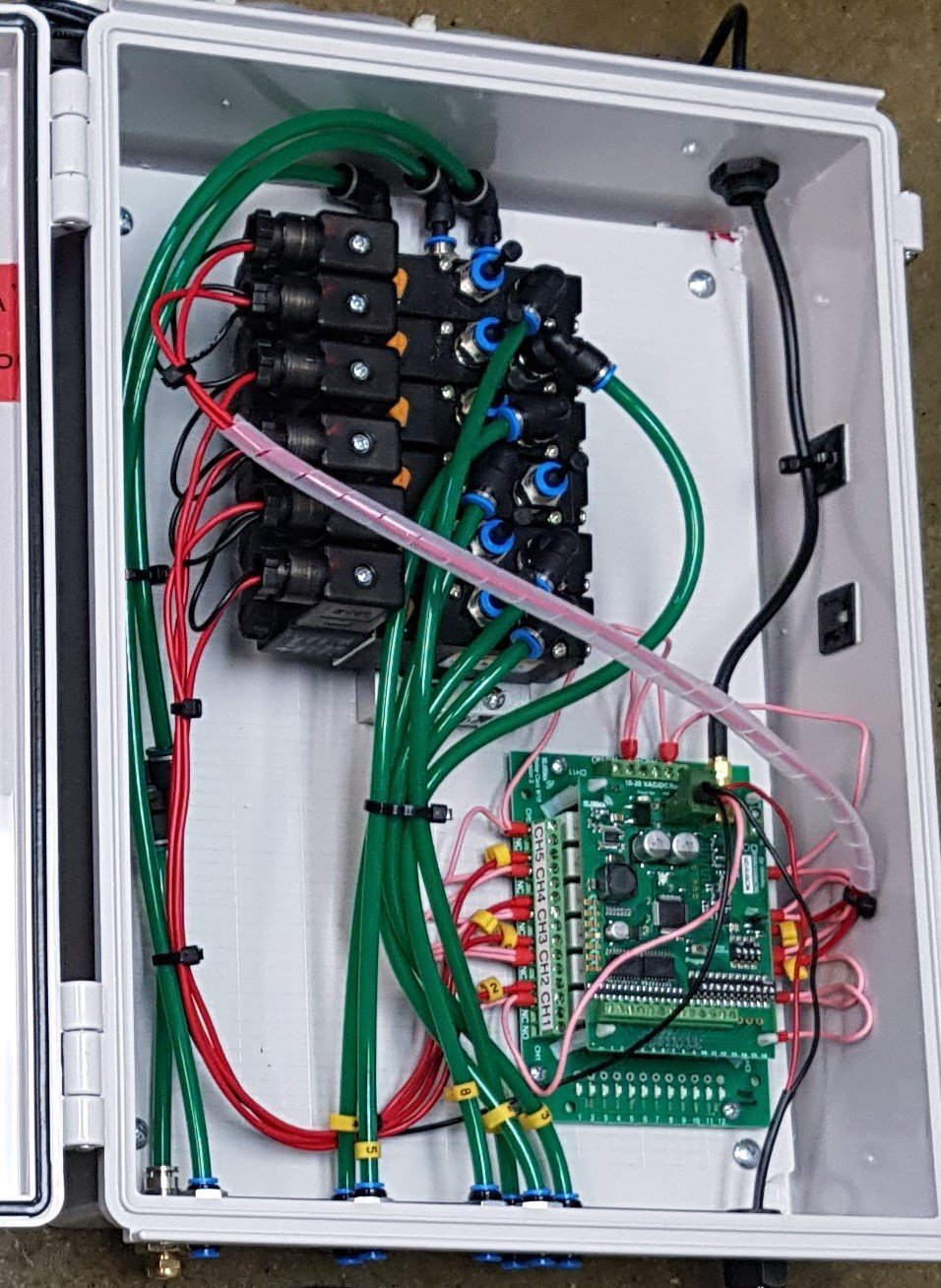

In-cab control box, electrical control cabinet with 6 solenoids mounted in weatherproof (IP65 rated) box, valve air fittings, bulkhead fittings, and internal air hose. Electrical wiring (numbered and colour coded). Wiring and air schematic.

Six (6) Functions

• Three (3) x Rear Sprays - Normally Open (N/O) or 'One Way' (One Airline)
• Two(2) x Side Sprays  - Normally Open (N/O) or 'One Way' (One Airline)
• One (1) x Dribble Bar - Normally Closed (N/C) or 'One Way' (One Airline)
• One (1) x Beacon - Function
• One (1) x Working light - Function
• Solenoid valves  & receiver mounted in a box.
• External (Relocatable) Aerial

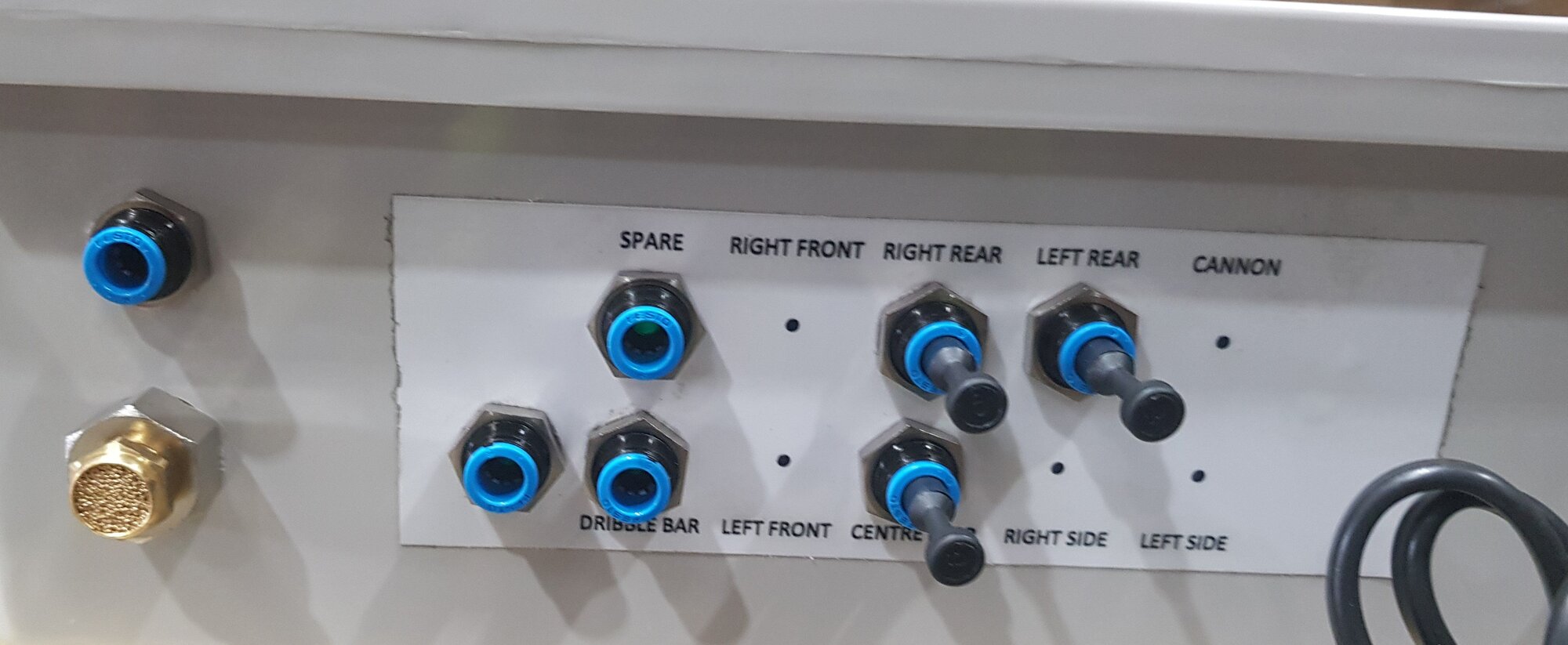

• Air Inlet & Air Outlets - 6mm bulkheads to suit 6mm airline
• CONFIGURATION CAN BE MODIFIED AS REQUIRED - CAN BE MADE TO ORDER (Refer Control System Requirement - Customer Selection Brochure)

SHIPPING

SHIPPING

Dimensions: 0.30m (w) x 0.50m (l) x 0.120m (h)
Weight: 6kg
Cubic: 0.018m3
