Electric Over Air Control System - 9 Function - WIRED

PART #: CS110121SYS-9

Electric Over Air Control System - 9 Function - WIRED

$3,288.46
Sold Out - Backorder Available

The CS110121SYS-9 is a completely wired control system, the in cab control box is internally wired with switches that have LED's, while the air solenoids are housed in an external weather proof (IP65 rated) box that can be mounted on the tank. Functions can be removed as required.

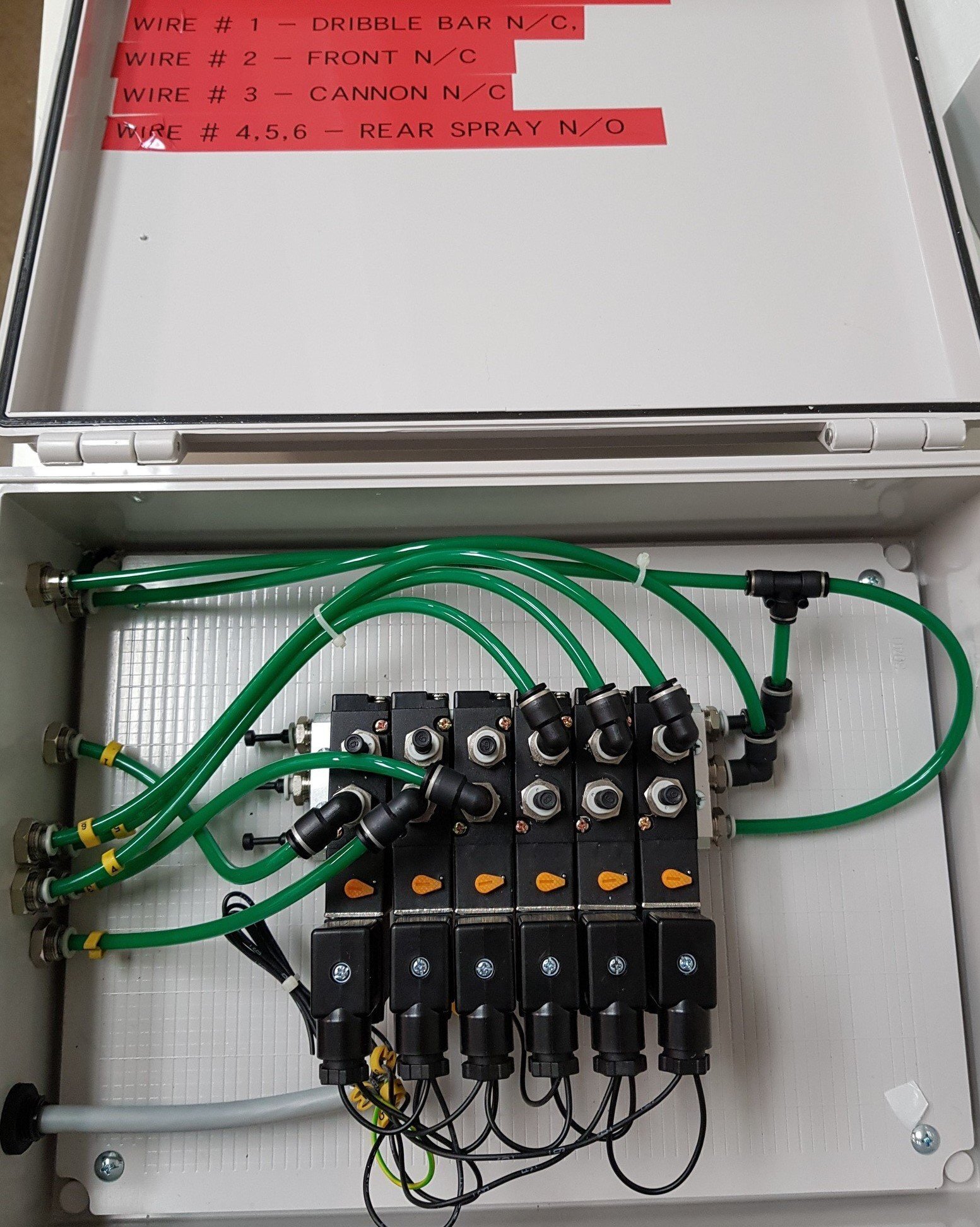

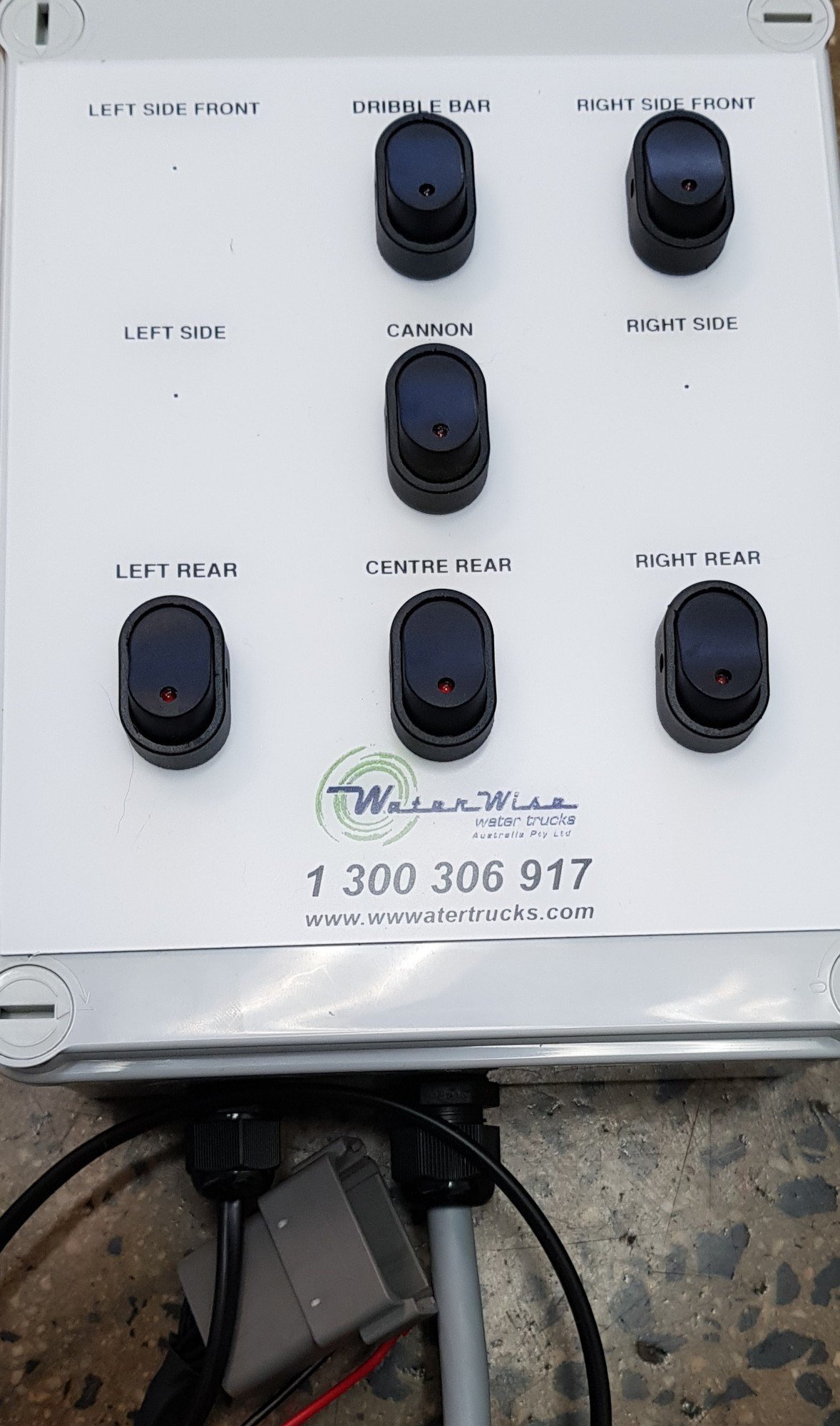

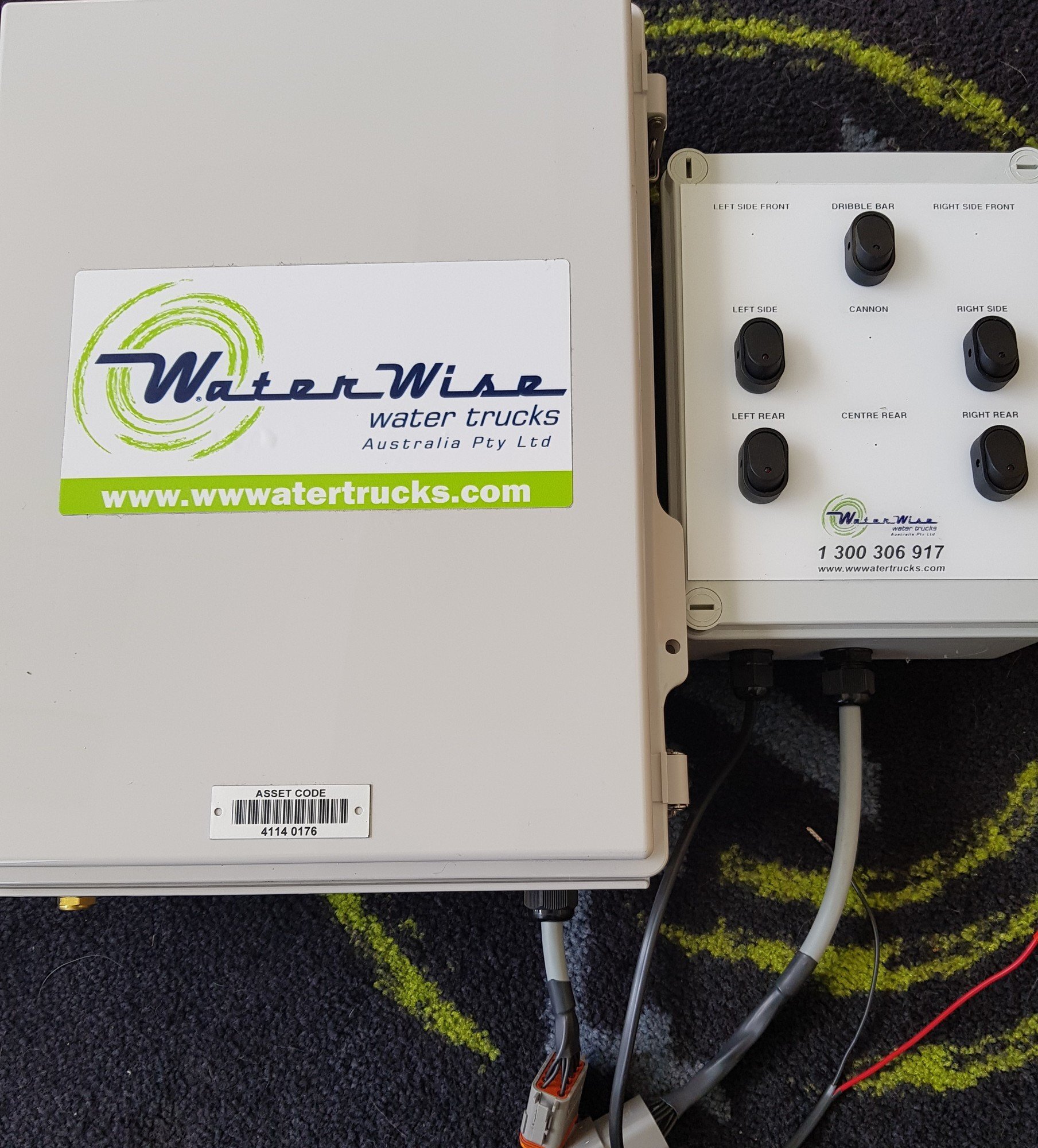

'In cab' control box has nine (9) switches fully wired with a face plate mounted in a plastic enclosure with separate control & power leads (control lead has a Deutsche Plug).  Electrical control cabinet has nine (9) solenoids mounted in weatherproof (IP65 rated) box, valve air fittings, bulkhead fittings and internal air hose. Electrical wiring (numbered and colour coded). Wiring and air schematic. Control cable (10 metres in length) with Deutsche plugs connects the two (2) boxes.



Must Specify whether 12V DC or 24V DC is required

Nine (9) Functions

  • Three (3) x Rear Sprays - Normally Open (N/O) or 'One Way' (One Airline)
  • One (1) x Dribble Bar  - Normally Closed (N/C) or 'One Way' (One Airline)
  • Two (2) x Front Sprays - Normally Closed (N/C) or 'One Way' (One Airline)
  • Two (2) x Side Sprays -  Normally Open (N/O) or 'One Way' (One Airline)
  • One (1) x Cannon  - Normally Closed (N/C) or 'One Way' (One Airline)
  • Solenoid valves  mounted in a box
  • 6mm bulkheads to suit 6mm airline
  • CONFIGURATION CAN BE MODIFIED AS REQUIRED - MADE TO ORDER





(CS110121SYS-9)

SKU CS110121SYS-9
Brand Water Wise Truck Parts
Shipping Weight 5.0000kg
