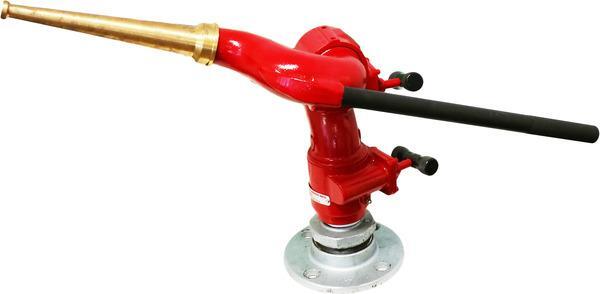

Elkhart Sidewinder 2" (50mm) Manual Water Cannon 2" (50mm) Flange Base with 2" (50mm) Butterfly Valve

PART #: WTMC-050-SW-M-2

Elkhart Sidewinder 2" Manual Water Cannon 2" Flange Base

$2,926.43
In Stock

The 2" manual operated Sidewinder is compact and light. Elkhart’s Sidewinder features a 1.5” fully-vaned waterway, with straight nozzle, fast-action tiller control with lockable up/down and slew and double-ball races with stainless steel ball bearings. Standard with 2" flange base and 2" manual butterfly valve. Can be supplied with 3" flange base and 3" manual butterfly valve on request.

FEATURES
  • Greater flow capacity – Operates easily at all pressure ranges
  • Less friction loss
  • Single waterway balance flow design
  • Straight nozzle
  • Position locks – vertical and horizontal
  • Double seal swivels
  • Baked red polyester
SPECIFICATIONS
  • Cast aluminium
  • 1325 Litre per minute capacity (350 US Gallons per minute)
  • 140 degree vertical travel
  • 360 degree horizontal travel
  • 1 ½” , 2” or 3” flange mounting
SHIPPING

Dimensions: 0.560m (w) x 0.300m (l) x 0.480m (h)
Weight: 9kg
Cubic:0.080640000m3

(WTMC-050-SW-M-2)

SKU WTMC-050-SW-M-2
Brand Elkhart Brass USA
Shipping Weight 9.0000kg
