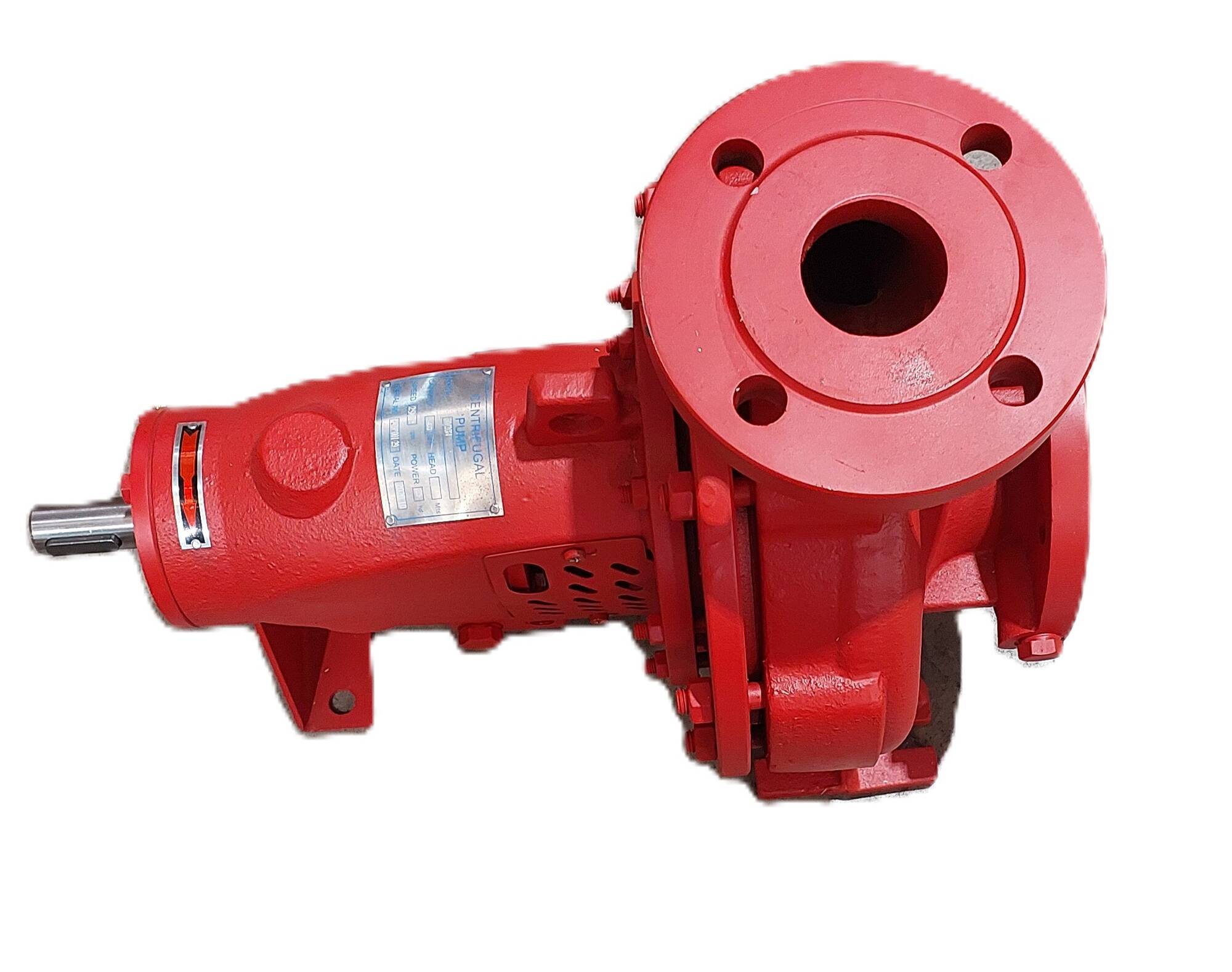

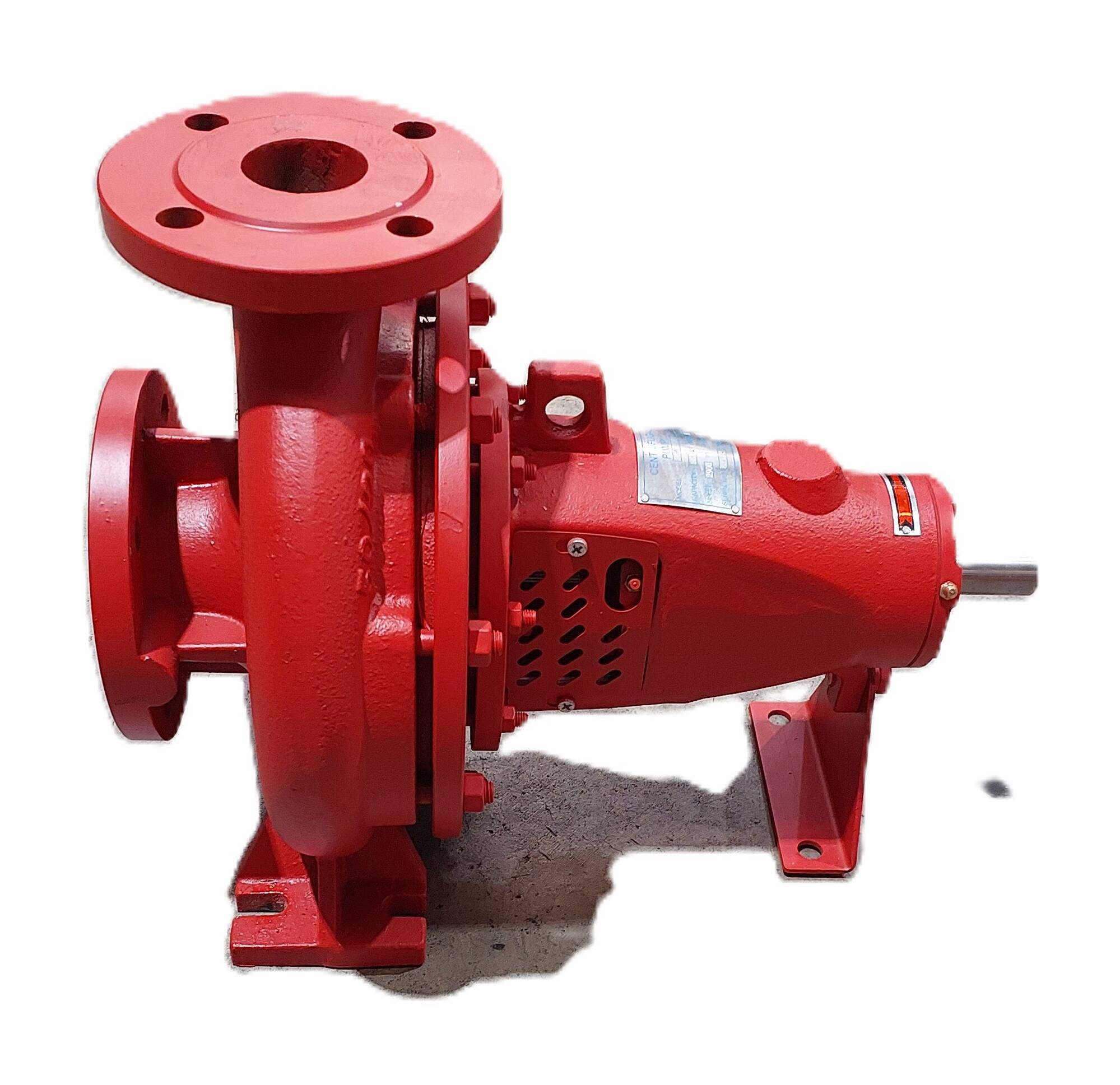

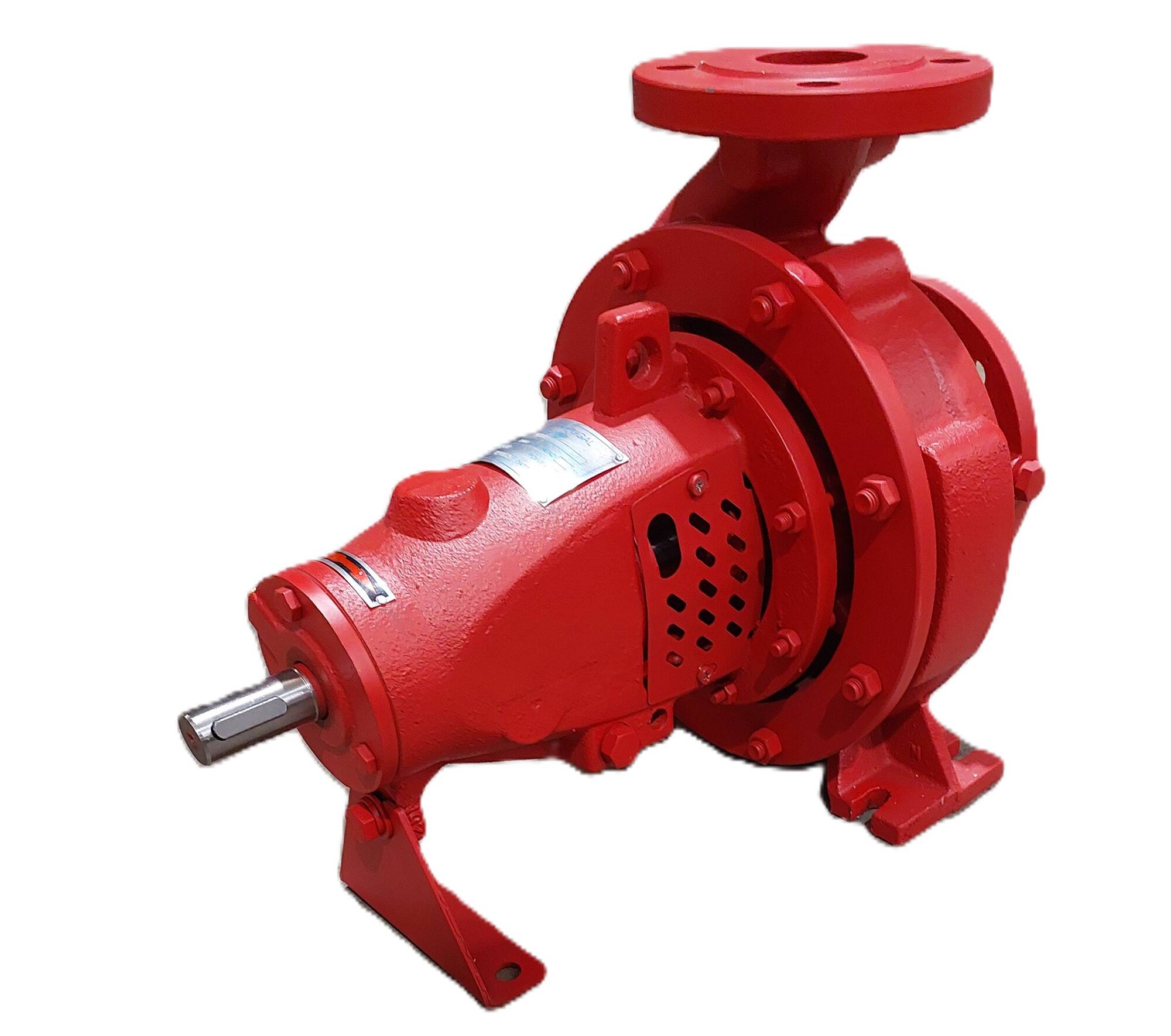

LIMITED PRODUCT - CNP Bare Shaft Water Pump 80mm (3") X 65mm (2.5") Maximum Flowrate 2900 LPM

PART #: P080-065-ISO-CW-CNP-SP

RRP $1,251.22
$625.61
SAVE $625.61 (50%)
In Stock

SPECIAL - LIMITED PRODUCT (50% OFF RRP)

LIMITED TO 4 x UNITS ONLY



Water pump - Bare Shaft.

FEATURES
  • Designed for water applications
  • Cast Iron

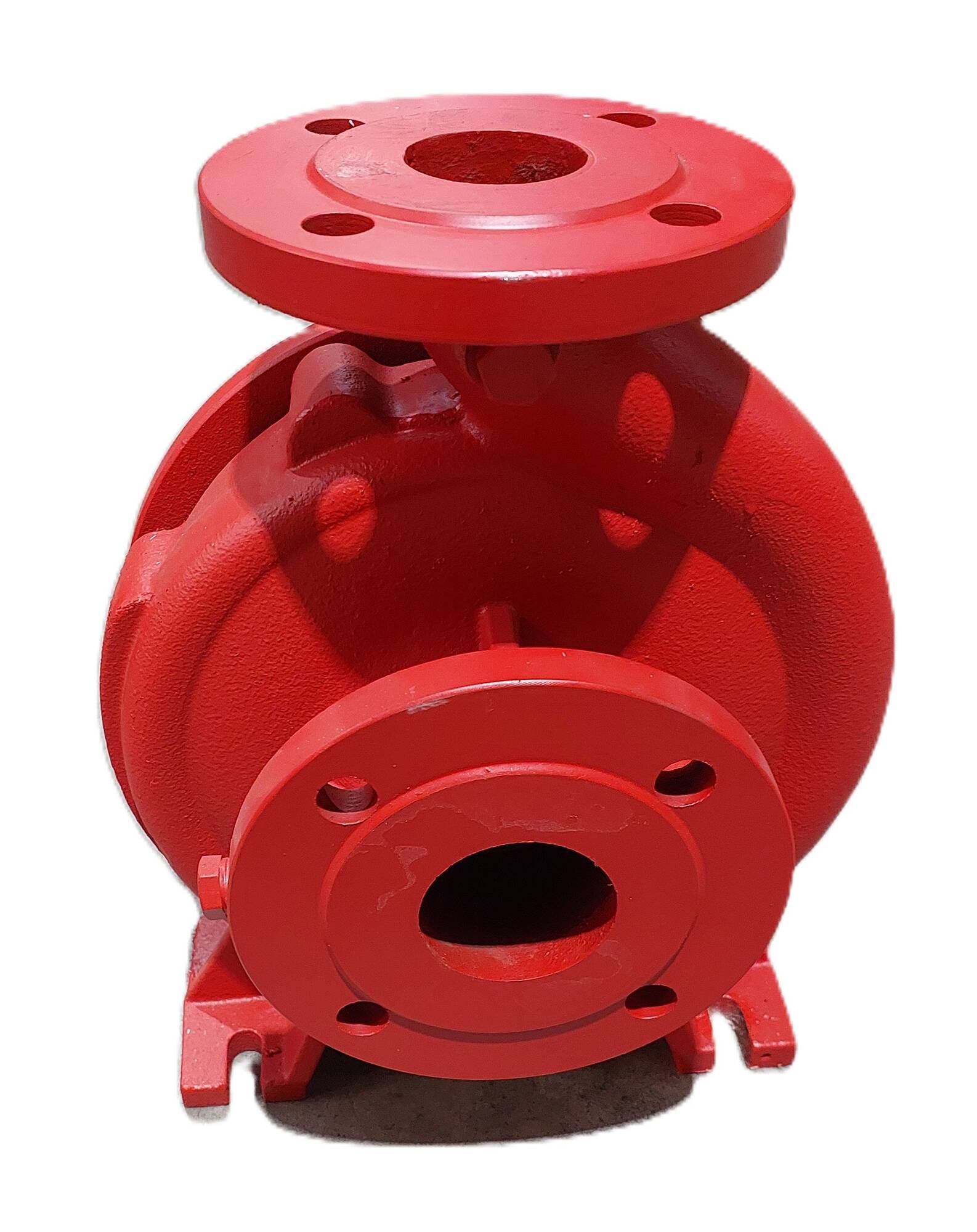

  • Inlet 80mm (3") - 3" Flange x Outlet 50mm (2") - 2.5" Flange
  • Model 50/20N

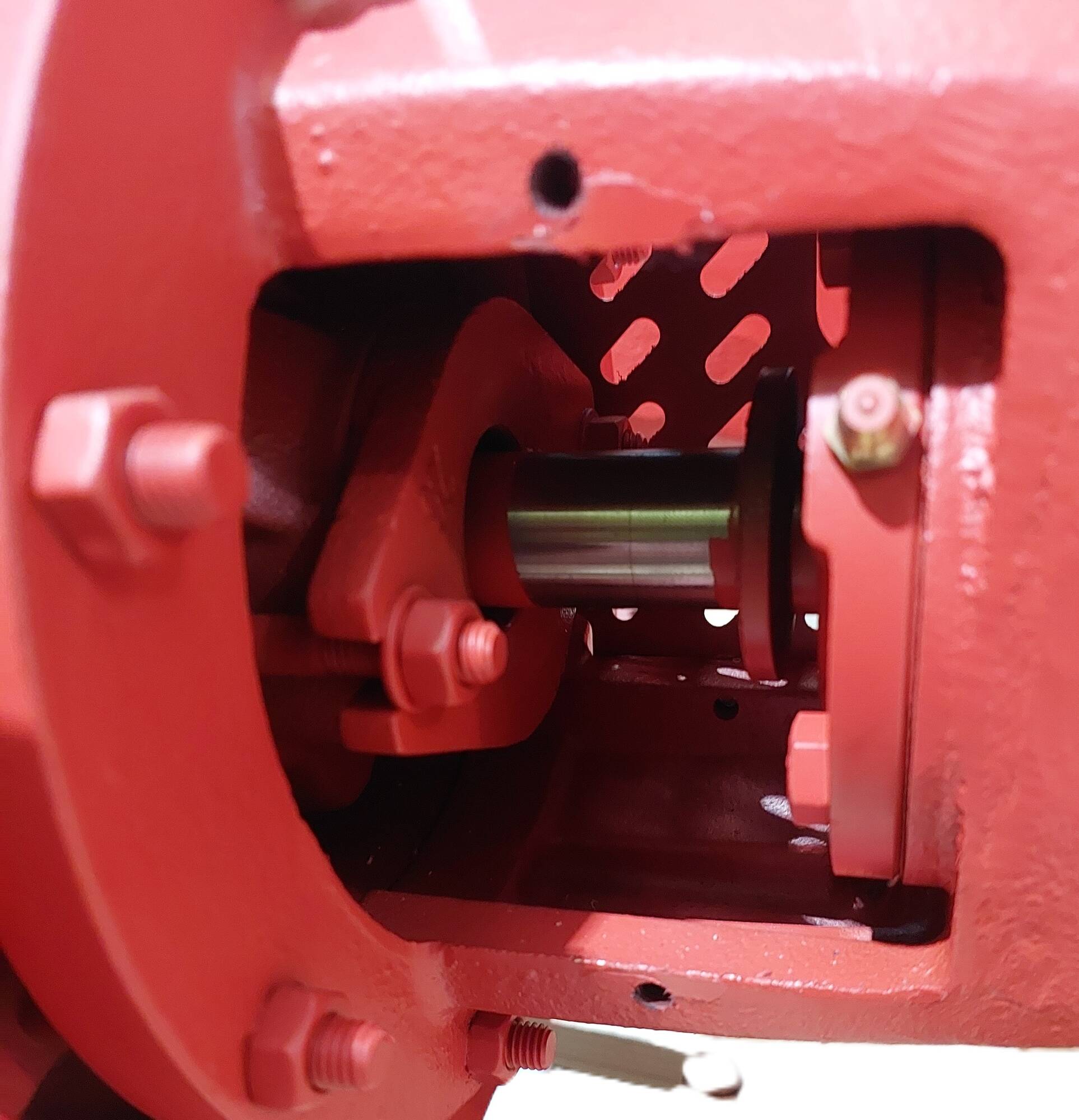

  • Rope Seal

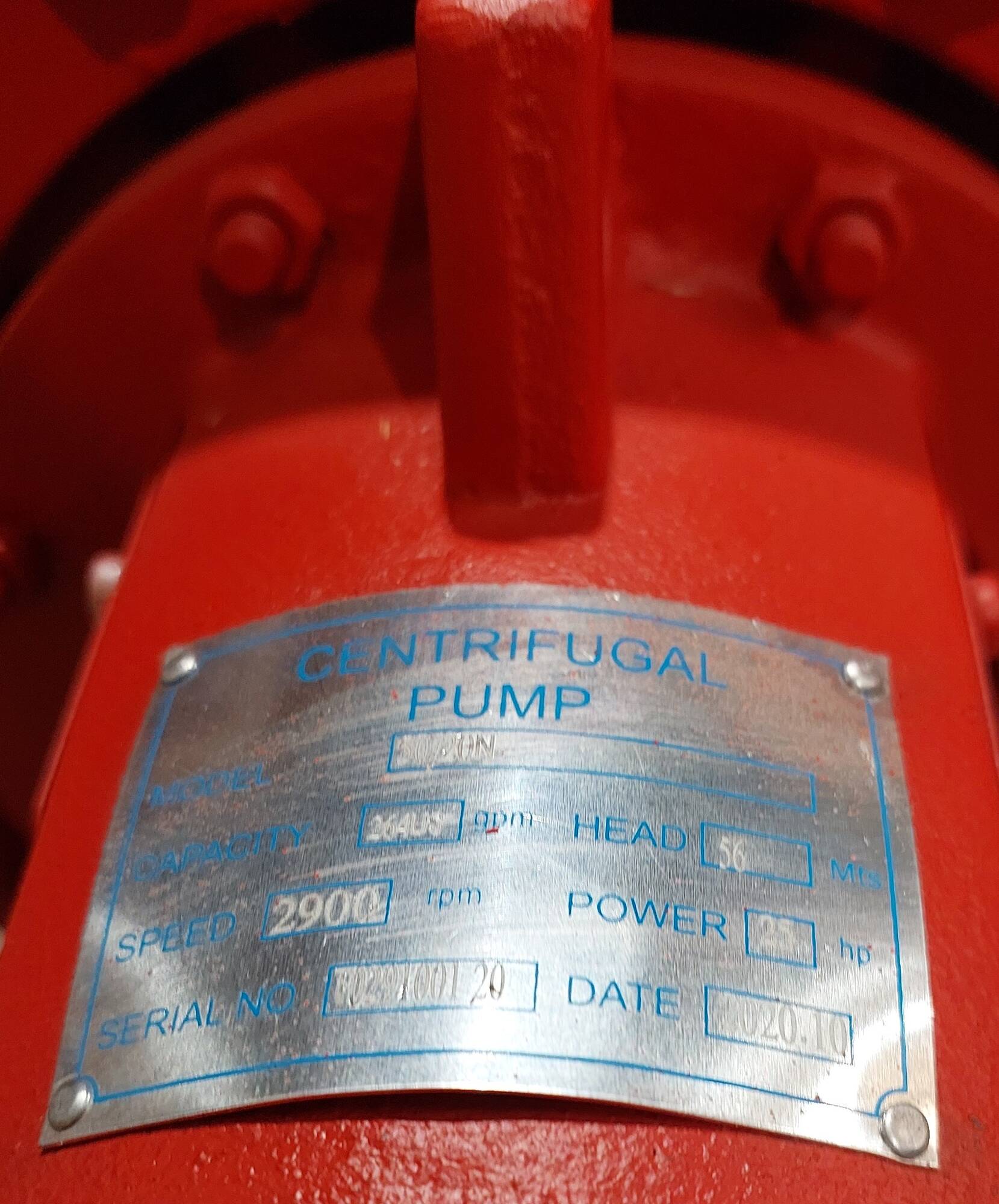

  • 2900 RPM Speed
  • Impeller 200mm
  • Maximum flowrate 264 USGPM (1000 LPM)
  • Maximum Head 56m
  • Maximum power required 25 hp
  • Clockwise rotation (CW)
  • ISO Configuration - Water Pump outlet is inline with Pump suction and Pump center line - Outlet can be rotated to suit installation

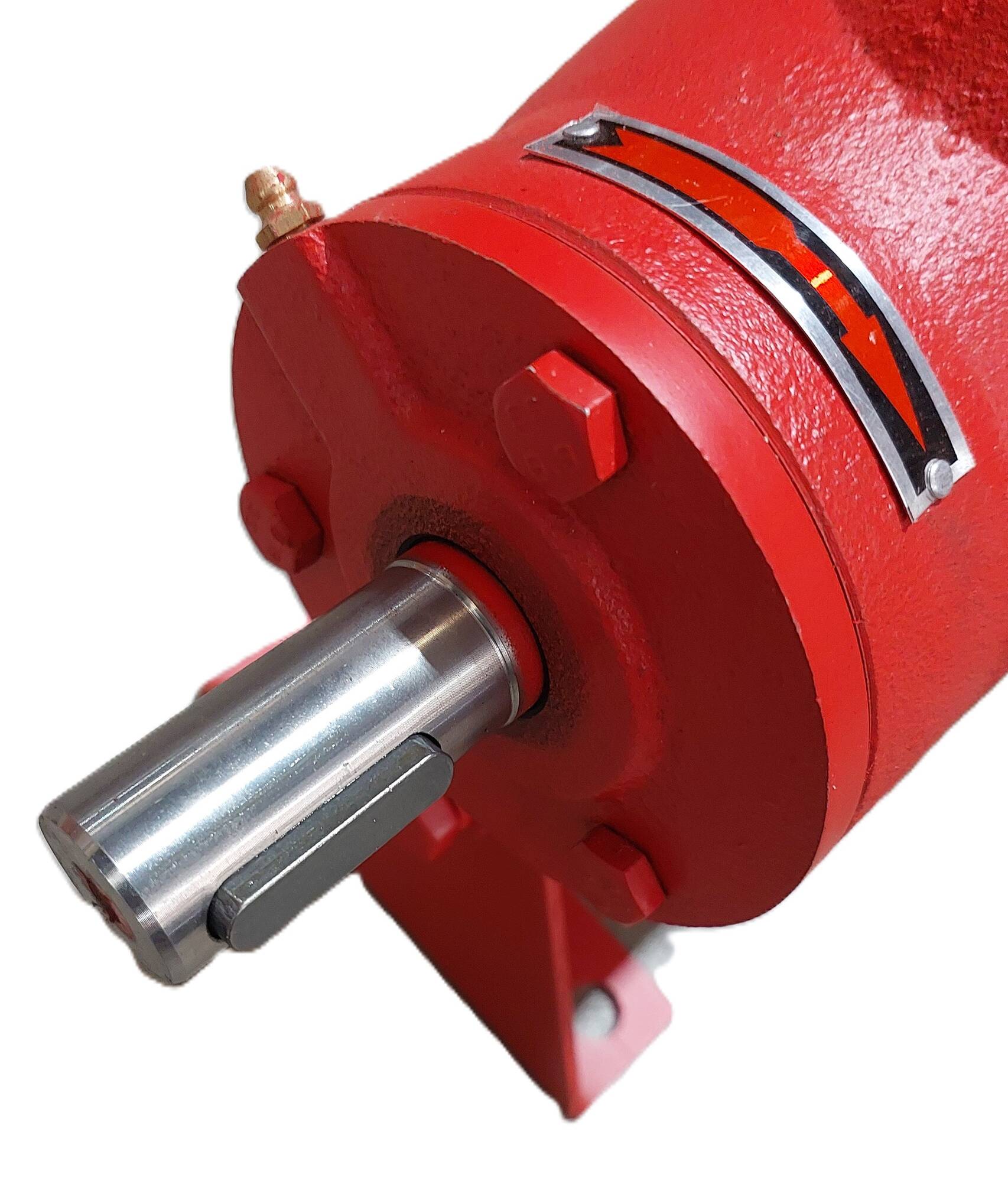

  • Shaft Size 25mm, Key 8mm
SHIPPING

Dimensions: 0.265m (w) x 0.485m (l) x 0.36m (h)
Weight: 48kg
Cubic: 0.0463m3

WATER PUMP FITTINGS KIT AVAILABLE:
WE ALSO RECOMMEND
  • Water Wise Water Trucks 40mm Pressure Relief Valve (040PRVBR)
  • Water Wise Water Trucks SV500 & SV1000 Spray Valves
  • Water Wise Water Trucks 50mm (2") & 65mm (2.5") Butterfly Valve Spring Return - Air Actuated (050BSRSS, 065BSRSS)

(P080-065-ISO-CW-CNP-SP)

SKU P080-065-ISO-CW-CNP-SP
Brand CNP
Shipping Weight 58.0000kg
Shipping Width 0.450m
Shipping Height 0.600m
Shipping Length 0.800m
Shipping Cubic 0.216000000m3
