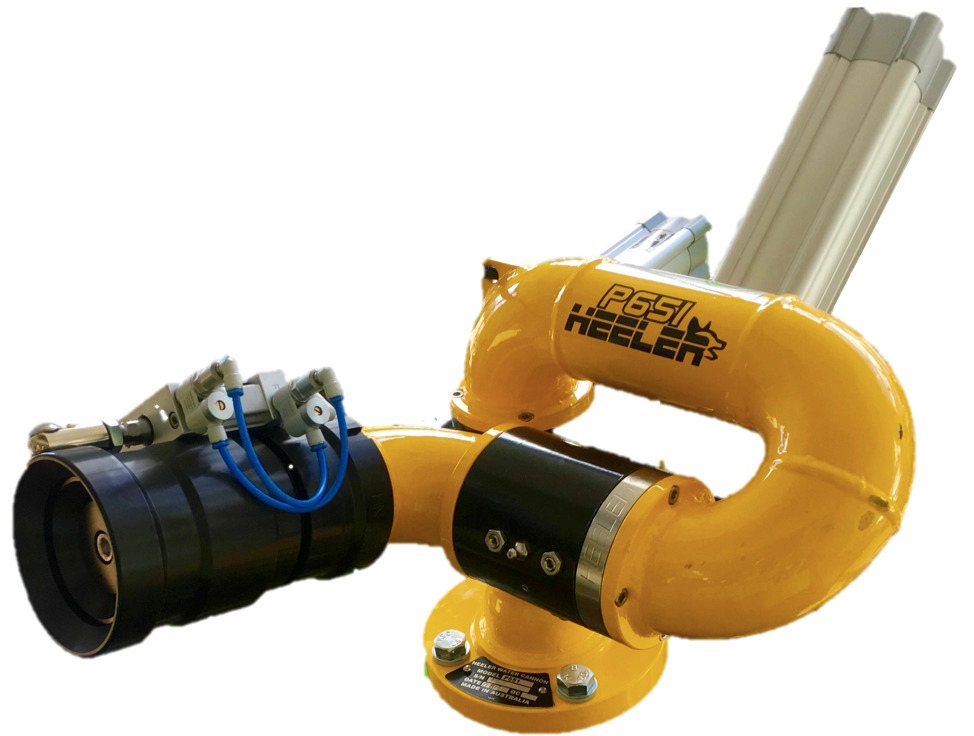

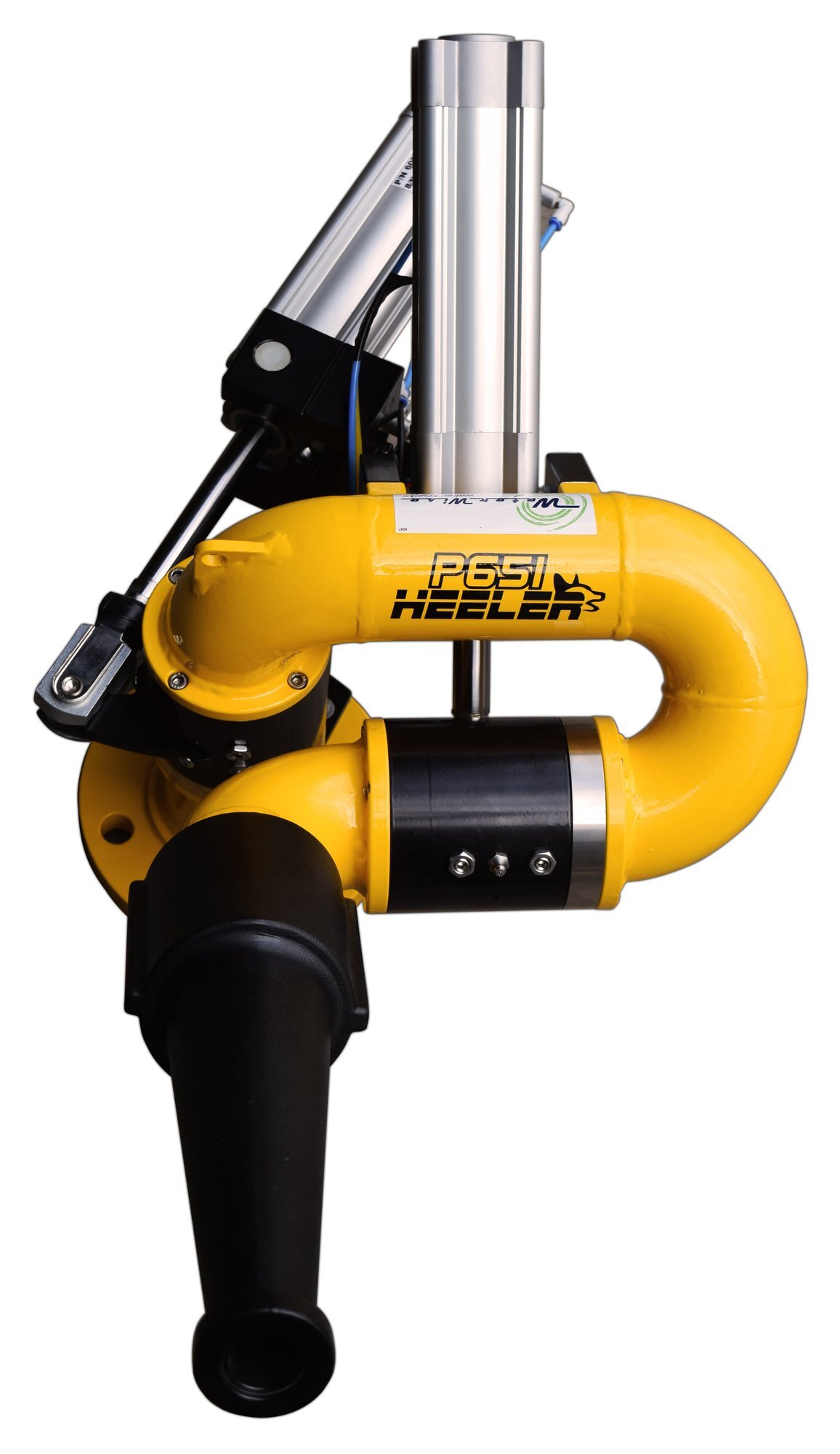

P651 Pneumatic Water Cannon Automatic (in cab) Adjustable Nozzle - Low Profile 3" Flange Base, 2 1/2" waterway





Designed for easy installation and operation the P651 pneumatic water cannon offers a significantly better alternative to what is currently available and accepted in the industry.  It features a proven rugged low profile design and mounts to a 80mm ANSI 150lb flange. A robust cab mounted joystick (mounted in a box) is connected via a 10 metre airline loom to high quality pneumatic cylinders and fittings providing 90 degrees of smooth precise motion. The cannon has unique extreme duty (patented) stainless steel dual race swivels. The swivels are removable for easy service and utilize an advanced sealing system. THE ORIGINAL & THE BEST  Designed and manufactured in Australia the P651 sets a new benchmark in quality and value backed by our 2 year warranty, it is supported by local parts supply and expert advice.



FEATURES

• Easy Installation
• Pressure Tested to 4,000 kPa
• 80mm (3”) ANSI Flange
• Low profile design

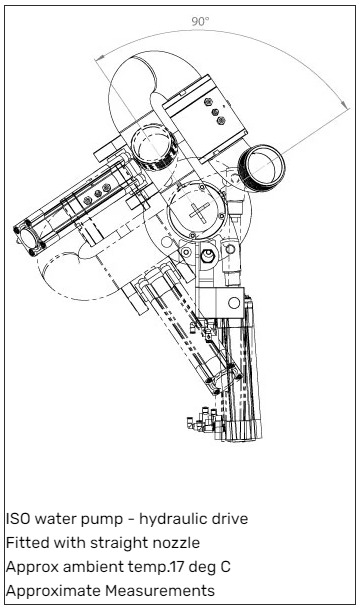

• 90 degrees of horizontal and vertical motion
• Stainless Steel Swivels
• 65mm (2 ½”) water way
• Schedule 40 steel water way
• Robust Pneumatic Joystick
• Adjustable speed control
• Long life swivel seals

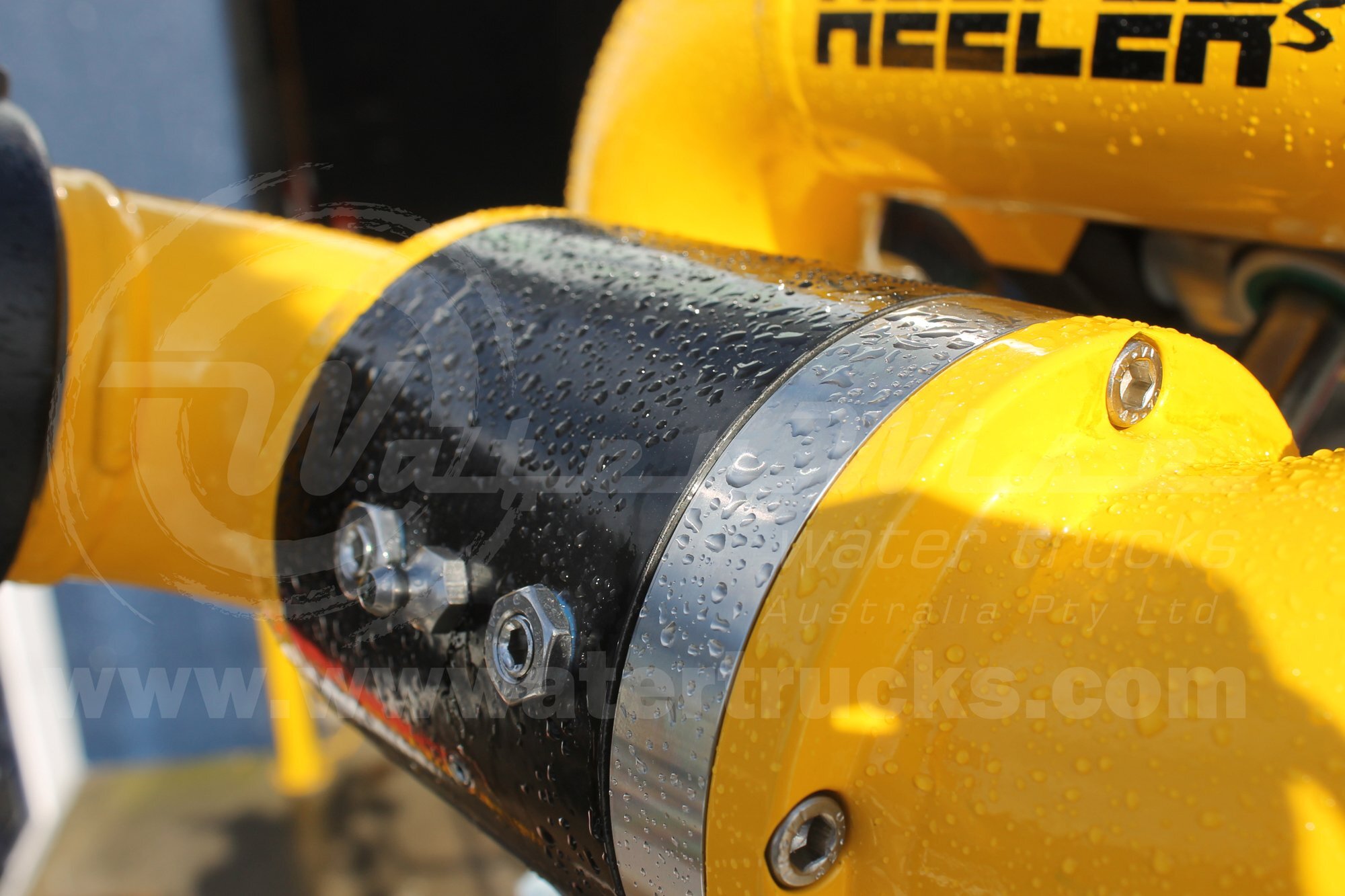

• Dual race replaceable (bolt on) swivels
• Stainless Steel Fasteners
• Operation & Maintenance Manual
• Installation Guide

CANNON KIT IS COMPLETE & INCLUDES

• P651 Pneumatic Water Cannon

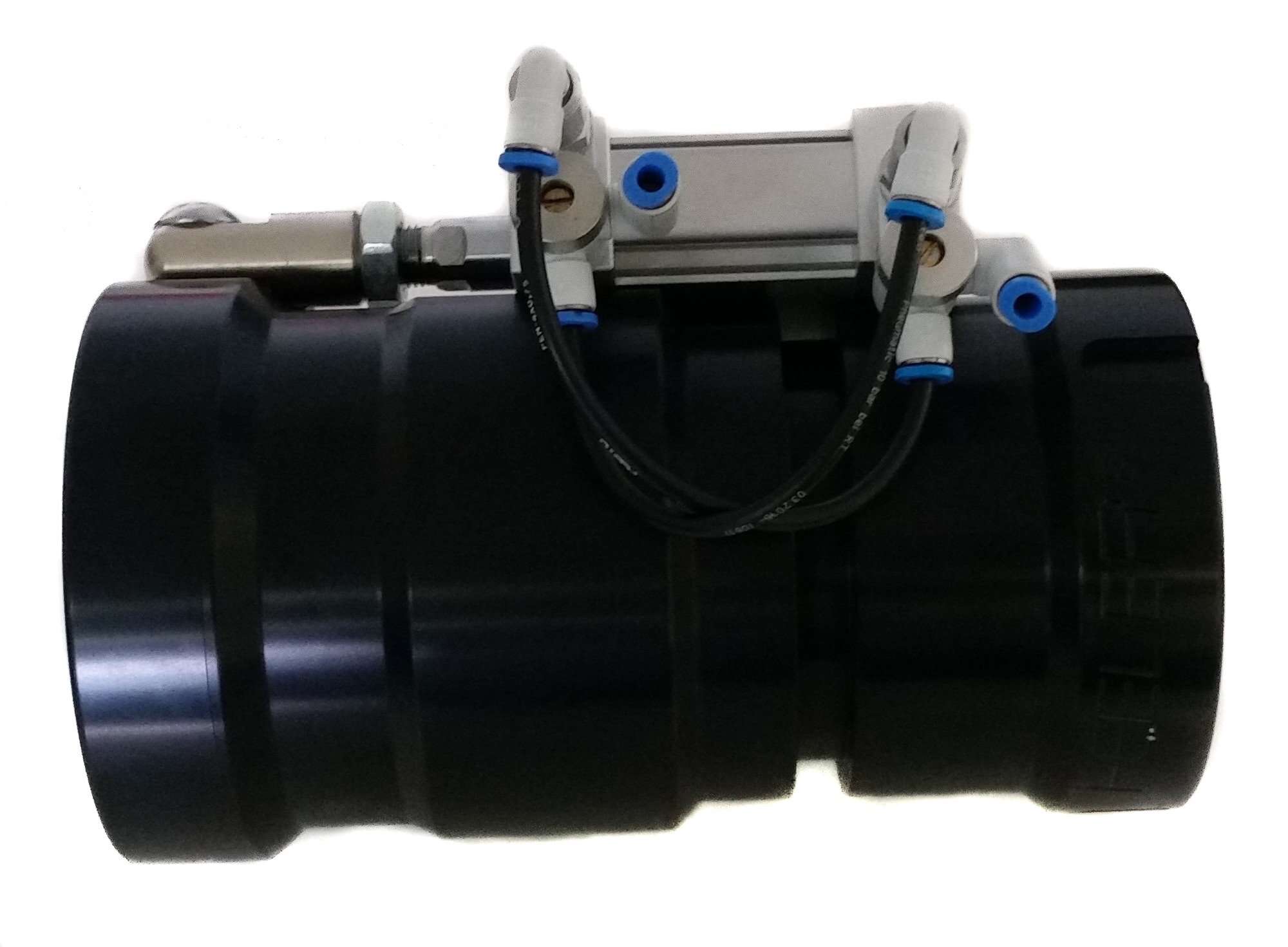

• N65P Automatic Adjustable Nozzle (World 1st)

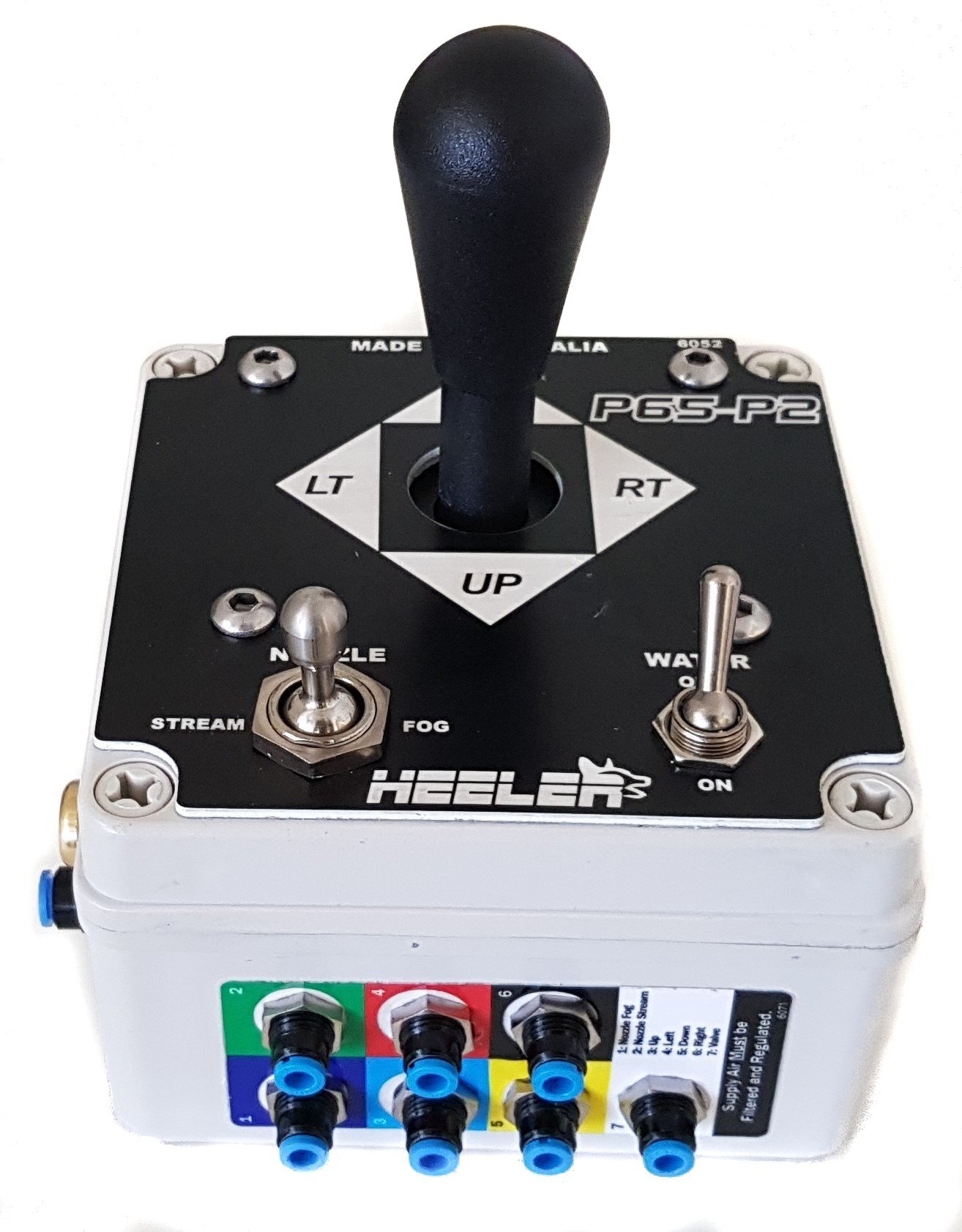

• Pneumatic Joystick, switches with fittings
• 80mm Spring Return Butterfly Valve with fittings
• 10m airline loom - 7 core (colour coded)
• Installation Manual

SHIPPING DETAILS

Dimensions: .50mm (w) x .64mm (l) x .55mm (h)
Weight: 47kg
Cubic: 0.176m3
