SV1500-HYD-80 Water Wise Hydraulic Spray Valve 80mm 500psi Maximum Pressure-BSP (British Standard Pipe)

PART #: SV1500-HYD-80BSP

$1,162.70
In Stock
Base

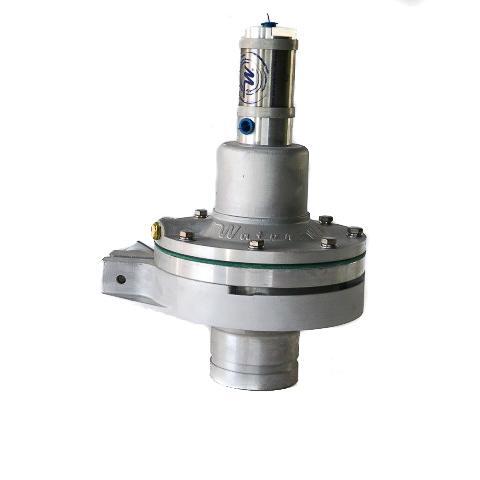

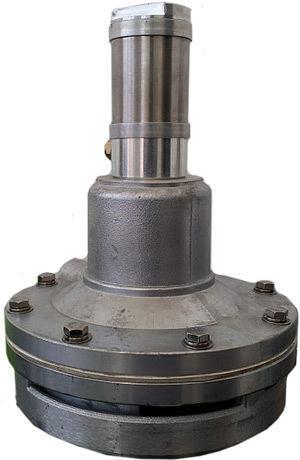

The SV1500-HYD is cast from marine grade alloy with an output capacity of up to 1500 litres per minute (400 US Gallons per minute) and provides a dense even spray discharge of up to 6.7 metres (22 feet) and a spray width of up to 11 metres (36 feet). The spray valve is Hydraulically actuated and has a 80 mm (3") base.

FEATURES
  • Hydraulic Cylinder Maximum Pressure 500psi
  • Spray Valve Volume 1500LPM
  • Valve base with ‘O’ ring
  • Polymer diaphragm sandwich plates with a rubber seal/gasket
  • Stainless steel internal spring
  • Stainless steel mounting bolts, eccentric and spring washers
  • Adjustable Spray Band
  • Valve inlet port OD 76 mm (3”)
  • Fully serviceable and complete parts support held in stock
  • 12 month warranty
BASE
  • Threaded, Grooved or Weld on Base - Please select when adding to cart.

SHIPPING

Dimensions: 0.23m (w) x 0.26m (l) x 0.30m (h)
Weight: 8kg
Cubic: 0.01725m3

(sv1500-hyd-80-water-wise-)

SKU sv1500-hyd-80-water-wise-
Brand Water Wise Truck Parts
Shipping Weight 8.0000kg
