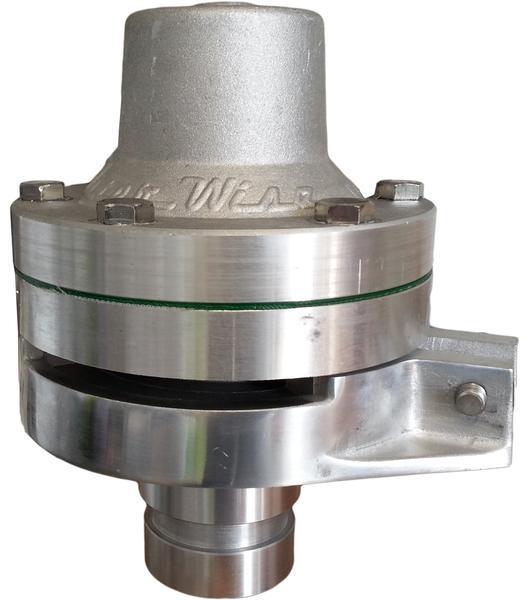

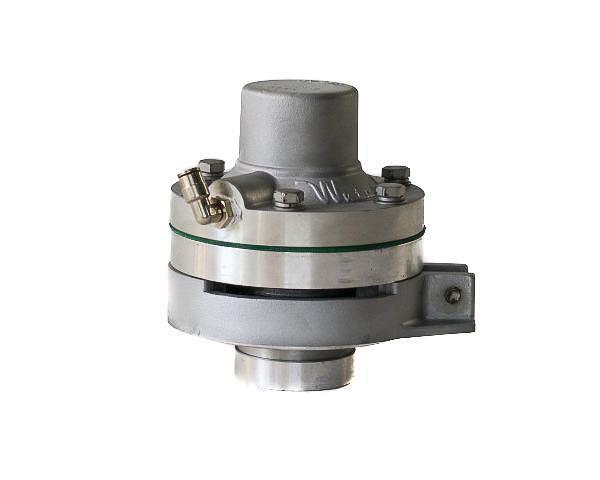

SV500-38 Water Wise Spray Valve 38mm 500LPM-Rolled Groove

PART #: SV500-38-RG

$324.50
In Stock
Base

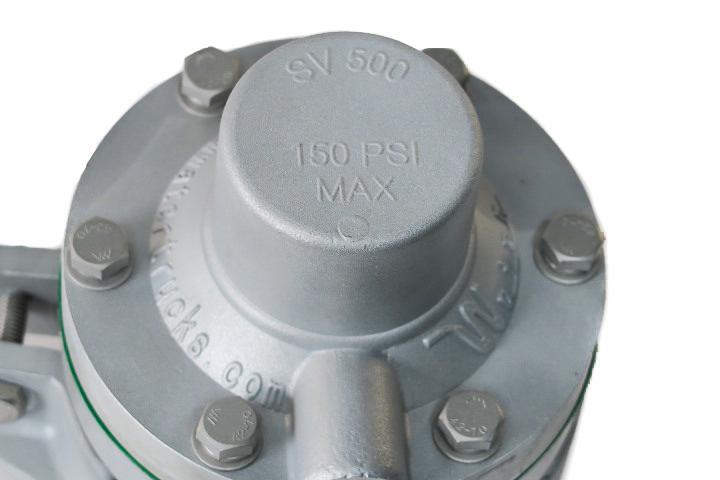

The SV500 is a fully serviceable spray head valve cast from Marine grade alloy with an output capacity of up to 500 litres per minute (120 US Gallons per minute) and provides a dense even spray discharge of up to 12 metres (40 feet) and a spray width of up to 11 metres (36 feet).

A fully adjustable cast aluminium spray ring allows infinite flow and spray pattern variation. Air pressure holds the valve closed while water pressure opens the valve (approximate valve opening pressure 0.55 bar / 8 psi).

An internal spring closes the valve when the water pump is shut down or an absence of air pressure exists and eliminates the need for additional shut off valves.

FEATURES
  • Valve base with 38mm (1.5”) base
  • Polymer diaphragm sandwich plates (bottom plate with rubber seal/gasket)
  • Stainless steel internal spring and hardware
  • Adjustable Spray Band
  • Valve inlet port OD 38 mm (1 1/2”)
  • Air Fitting on side of spray valve to avoid breakage
  • Fully serviceable and complete parts support available
  • Electric/water actuation option
  • 12 month warranty
SPRAY VALVE INCLUDES

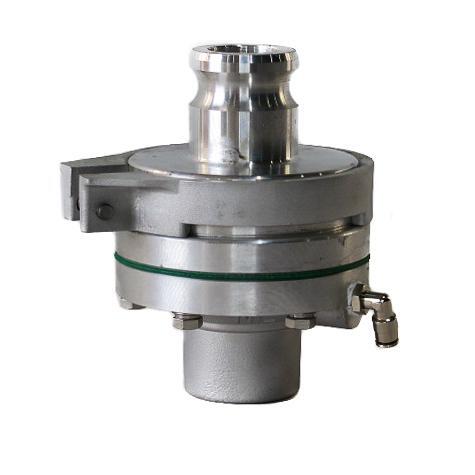

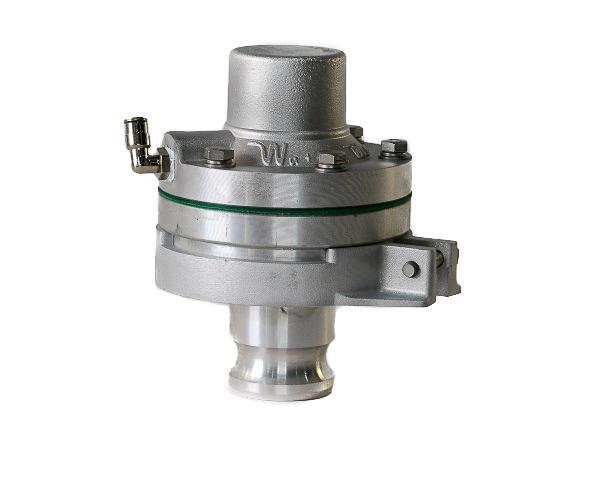

  • SV500 - 1 1/2" 38 mm Camlock base (SV500-38-CL) or SV500 Grooved Base (SV500-40-RG)
  • Spray Valve Diaphragm, Polymer sandwich plates & Spring.
  • Adjustable Spray Band (SV500-SB)
BASE
  • Camlock or Grooved - Please select when adding to cart.
ASSEMBLED DIMENSIONS

Camlock & Roll Groved Base: 0.150m (w) x 0.150m (l) x 0.170m (h)



SHIPPING

Dimensions: 0.150m (w) x 0.125m (l) x 0.190m (h)
Weight: 2.3kg
Cubic: 0.0048m3



(sv500-38-water-wise-spray)

SKU sv500-38-water-wise-spray
Brand Water Wise Truck Parts
Shipping Weight 2.3000kg
