SV500-80RG Electric Actuated Spray Valve 80mm 500LPM Rolled Grooved-12V

PART #: SV500-80RG-EA-12V

$529.01
In Stock
Voltage

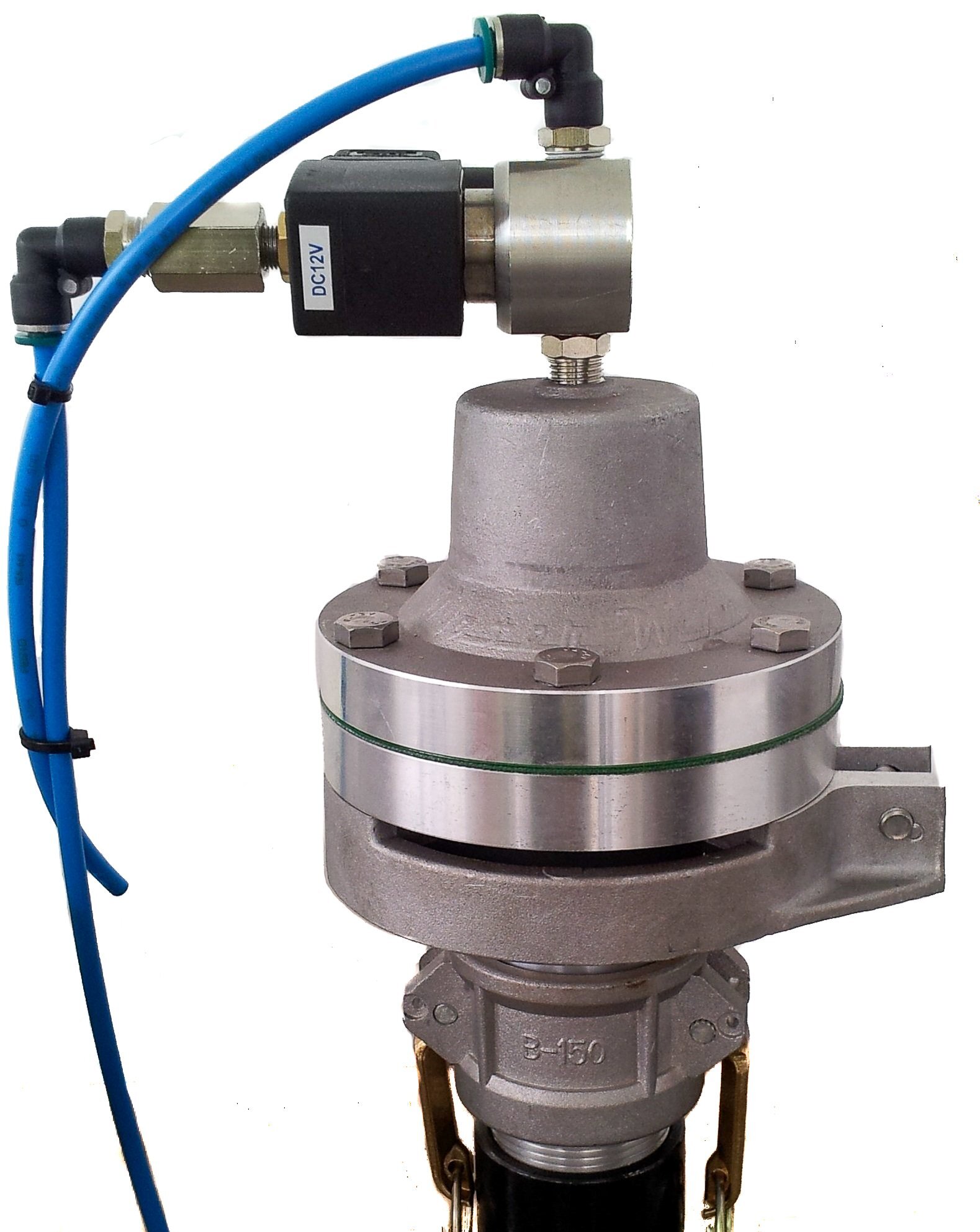

The SV500-080RG-EA is a fully serviceable spray head valve cast from Marine grade alloy with an output capacity of up to 500 Litres per Minute (120 US Gallons per Minute) and provides a dense even spray discharge of up to 12 metres (40 feet) and a spray width of up to 11 metres (36 feet).

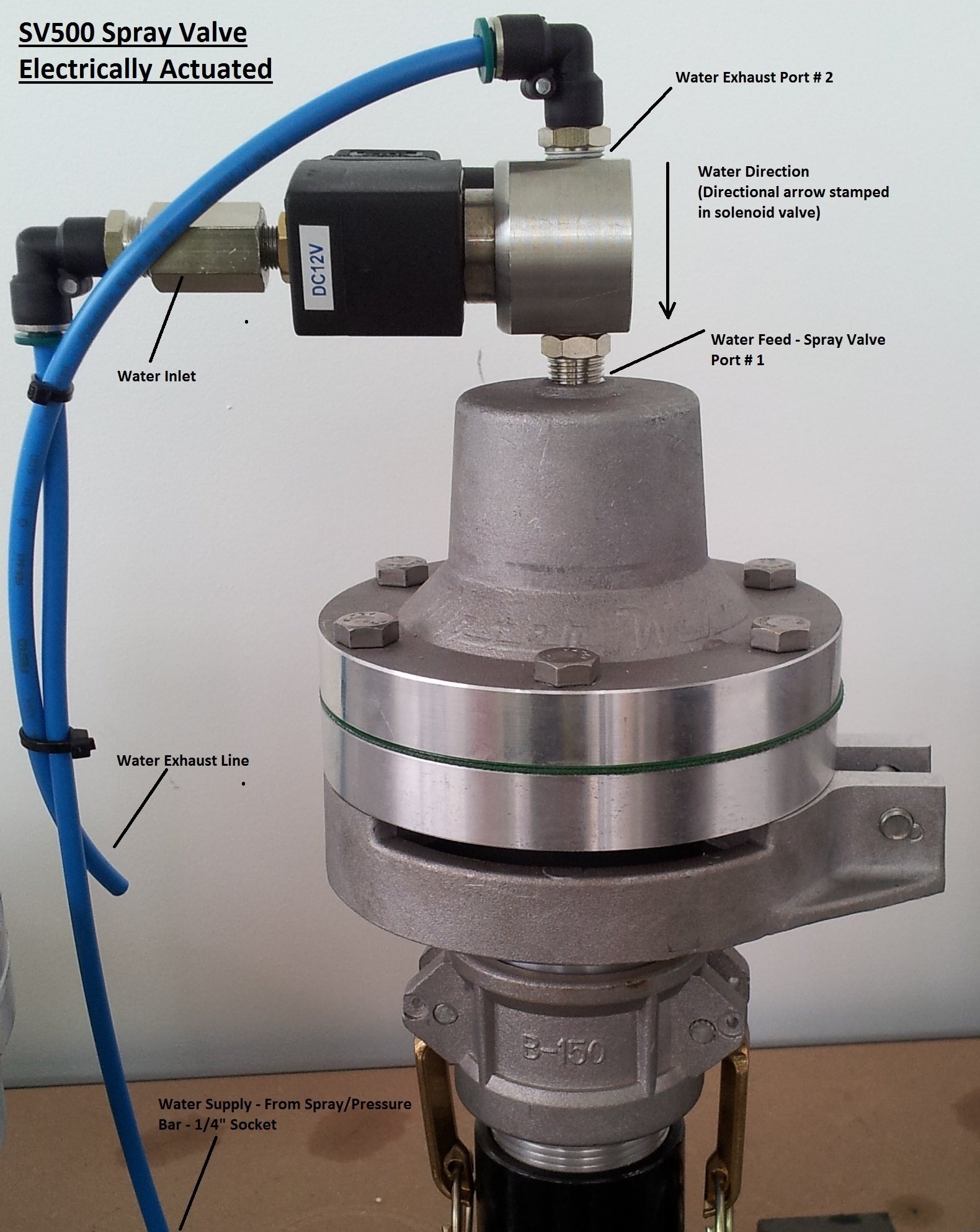

A fully adjustable cast aluminium spray ring allows infinite flow and spray pattern variation. Water pressure holds the valve closed but when the solenoid coil is energised water flow is diverted opening the spray valve (approximate valve opening pressure 0.55 bar / 8 psi).

An internal spring closes the valve when the water pump is shut down or an absence of water pressure exists and eliminates the need for additional shut off valves.

SPRAY VALVE INCLUDES
  • Electric/Water electrical actuated 24V or 12V - Please select when adding to cart.

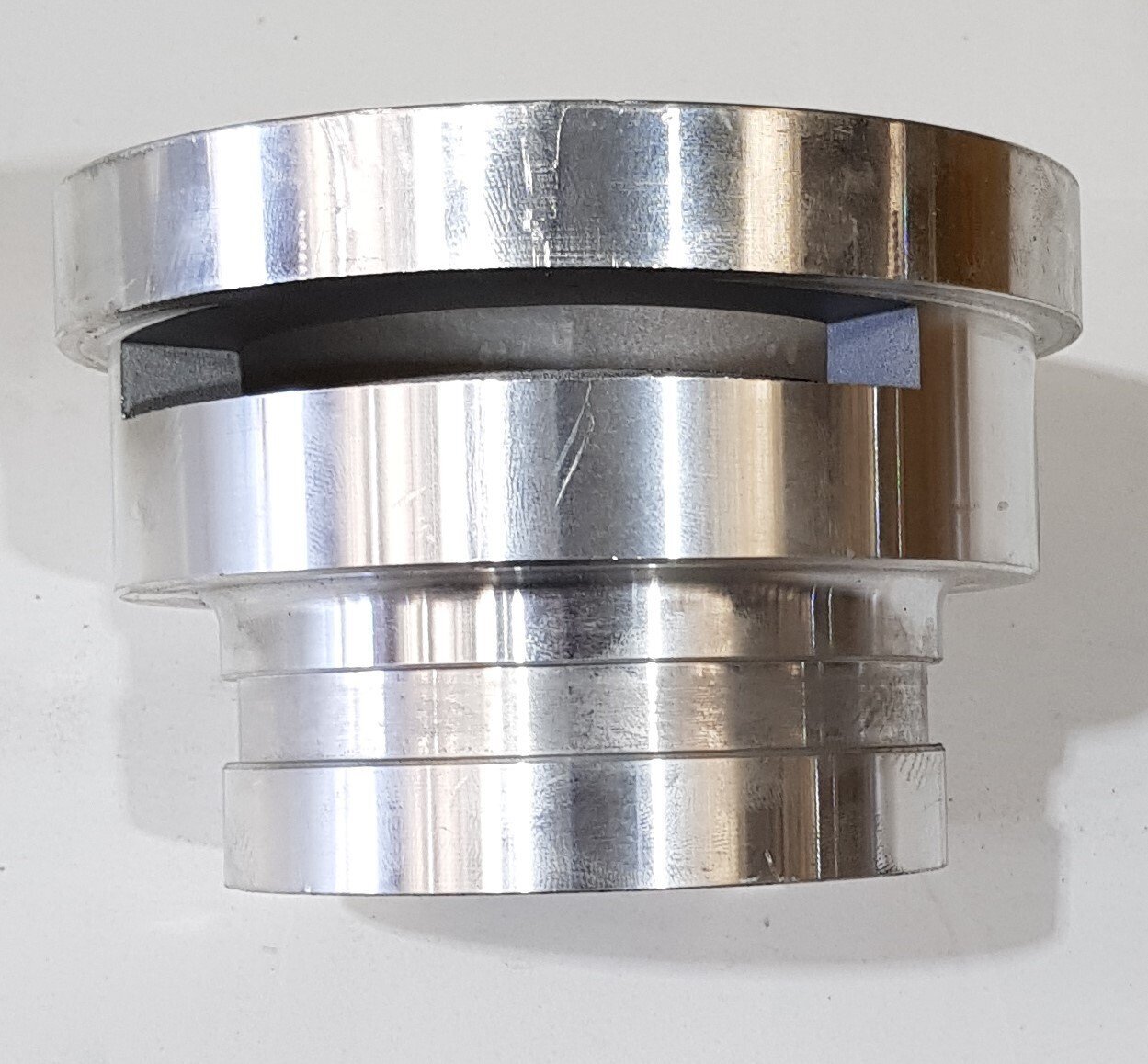

  • Valve base with 80mm (3”) Rolled Grooved fitting
  • Polymer diaphragm sandwich plates
  • Stainless steel internal spring and hardware
  • Adjustable Spray Band
  • 360 degree rotation
  • Valve inlet port OD 25 mm (1”)
  • Fully serviceable and complete parts support available
  • 12 month warranty
SHIPPING

Dimensions: 0.160m (w) x 0.150m (l) x 0.190m (h)
Weight: 2.6kg
Cubic: 0.004800000m3

(SV500-80RG-EA)

SKU SV500-80RG-EA
Brand Water Wise Truck Parts
Shipping Weight 2.3000kg
