Valve with Rolled Groove Ends-Electric Actuated (Normally Open) Shutoff Valve-12 Volt (12V)

PART #: 080SVEAL-ELEC-12V

$290.52
In Stock
Voltage

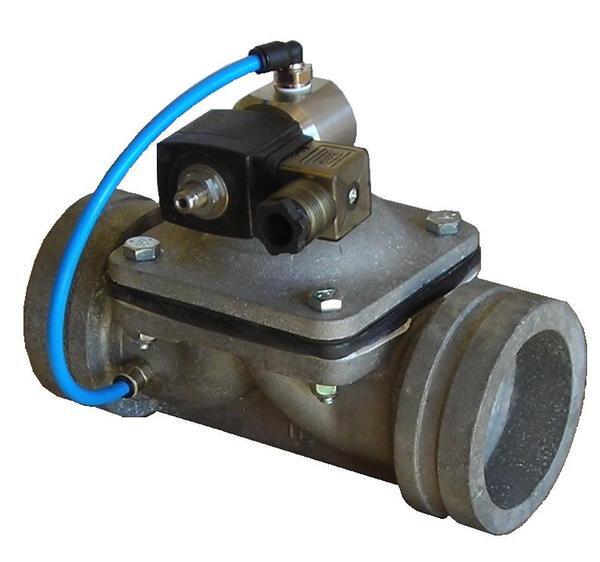

80mm (3") valve with roll grooved ends - electric actuated (normally open) shut off valve. The shutoff valve is cast from Marine grade aluminium providing flow shut off for remotely located spray nozzles.

The valve has two variations - actuation by air or water pressure (electric solenoid). Approximate weight, air actuated 1.5 kg, electric actuated 2.0 kg.

FEATURES
  • 3” grooved ends (victaulic type)
  • Flow port diameter 2”
  • Heavy duty diaphragm
  • Fully serviceable
  • Brass Solenoid
  • Maximum Solenoid Working Pressure - 3 Bar (58 psi)
VOLTAGE
  • 12 or 24 Voltage - Please select when adding to cart

Download Specs Sheet Here

SHIPPING

Dimensions: 0.180m (w) x 0.090m (l) x 0.210m (h)
Weight: 2.2kg
Cubic: 0.0034m3

(valve-with-rolled-groove-)

SKU valve-with-rolled-groove-
Brand Water Wise Truck Parts
Shipping Weight 2.2000kg
Shipping Width 0.180m
Shipping Height 0.210m
Shipping Length 0.090m
Shipping Cubic 0.003402000m3
