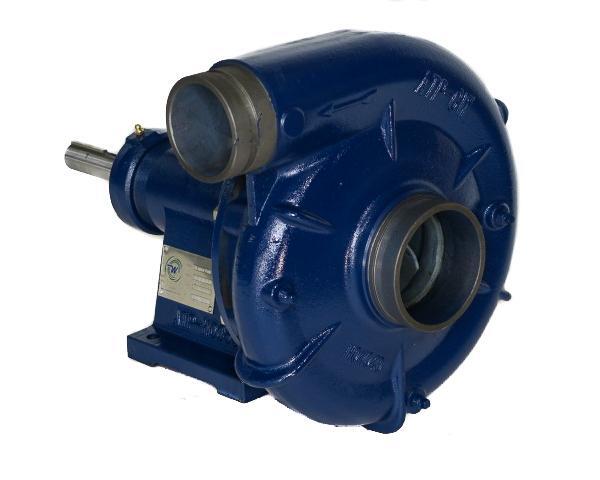

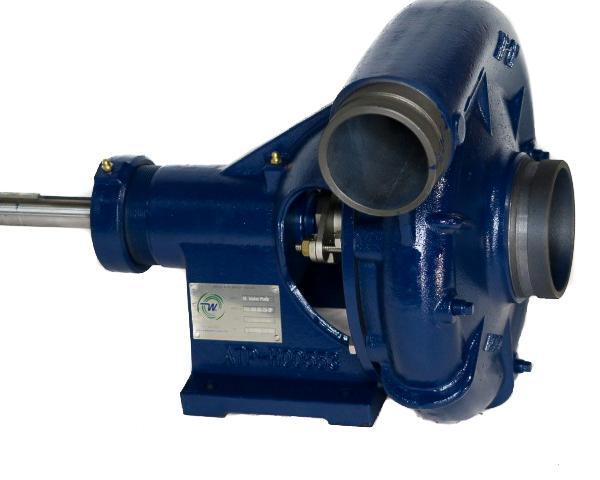

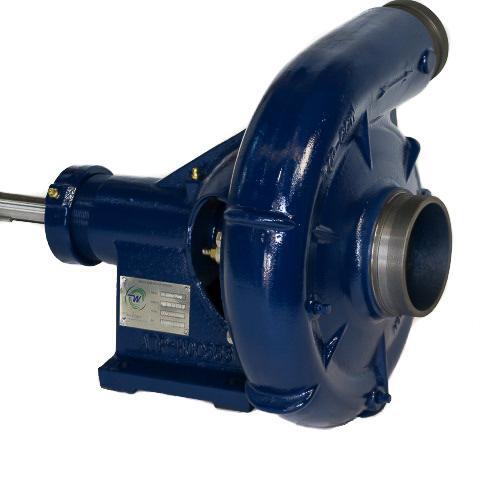

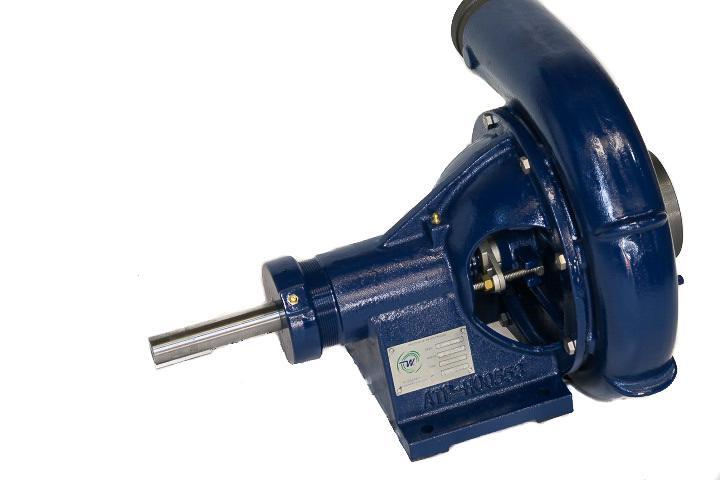

Water Wise B3 Bare Shaft Water Pump 100mm (4") x 80mm (3") 2800L/min - Clock Wise Rotation (CW)

PART #: P100-080-B3-CW

$1,524.60
In Stock
Rotation



ROTATION

Clockwise or Counterclockwise Rotation - Please select when adding to cart

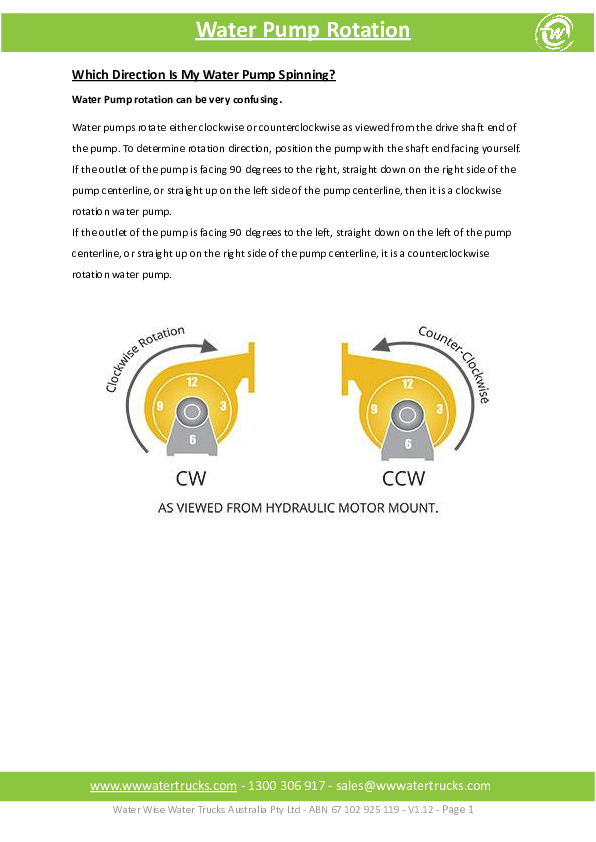

Which direction should my pump be spinning?
Water pumps rotate either clockwise or counterclockwise as viewed from the drive shaft end of the pump. To determine rotation direction position the pump with the shaft end facing yourself. If the outlet of the pump is facing 90 degrees to the right, straight down on the right side of the pump centerline, or straight up on the left side of the pump centerline, then it is a clockwise rotation pump.
If the outlet of the pump is facing 90 degrees to the left, straight down on the left of the pump centerline, or straight up on the right side of the pump centerline, it is a counterclockwise pump.

FEATURES
  • Keyed Shaft
  • Grooved Suction & Discharge
  • Cast iron with 10mm (4") suction and 80mm (3") discharge
  • Maximum Dynamic Head 27 metres
  • Impeller Diameter 230 mm (9")
  • Gland packed seal
  • Shaft Size 1 1/8" with 1/4" key way
  • Fully serviceable with parts support
  • Replaces Berkeley B3ZRM

FITTING KITS AVAILABLE:
  • 80mm (3) Roll Grooved Nipple (080NRGST)
  • 80mm (3) Roll Grooved Coupling - Galvanised (080RGCGS)
  • 100mm (4) Roll Grooved Nipple (100NRGST)
  • 100mm (4) Roll Grooved Coupling - Galvanised (100RGCGS)

DIMENSIONS:

0.50m (w) x 0.48m (l) x 0.57m (h)
Cubic: 0.1368 m3
Weight: 140kg

(water-wise-b3-bare-shaf-4)

SKU water-wise-b3-bare-shaf-4
Brand Water Wise Truck Parts
Shipping Weight 49.0000kg
