100mm (4") X 80mm (3") Hydraulic Driven Water Pump 3,000 LPM - with Stainless Steel Impeller & Splin

+61 1300 306 917

info@wwwatertrucks.com

Mon - Thurs 9am - 4:30pm, Fri 9am - 12pm AEST

Shipping Worldwide

$4,991.45

In Stock

Description
Specifications

Complete water pump (Replaces AGM water pump) with close coupled Permco hydraulic motor.

FEATURES

Designed specifically for water trucks
AGM type
100mm (4") x 80mm (3")
Mechanical Seal
2900 RPM Speed
3000 L/min Volume
Counter clockwise rotation (CCW)
With stainless steel shaft and impeller

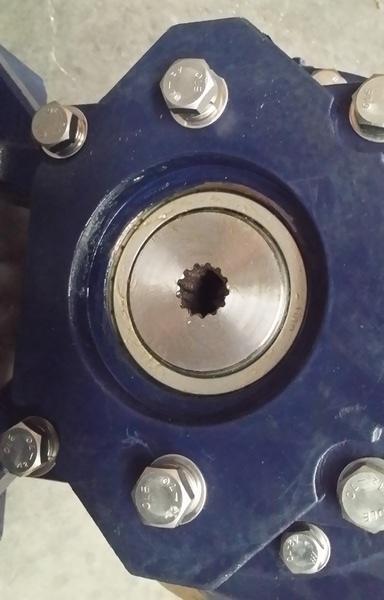

7/8" - 13 tooth spline drive
Water Pump outlet is inline with Pump suction and Pump center line - Outlet can be rotated to suit installation

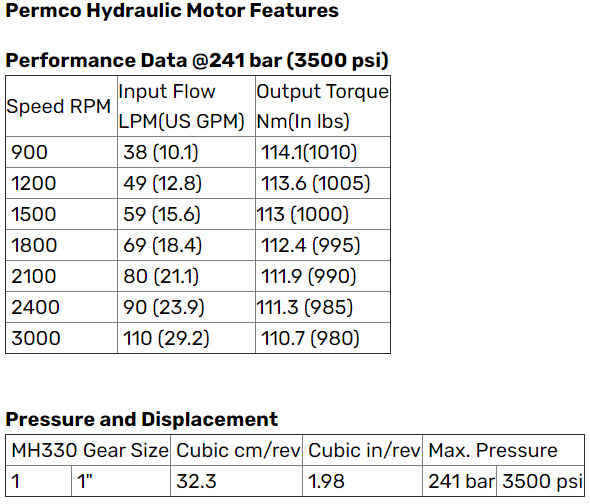

33 cc Hydraulic Drive Gear Motor - Permco HYD-PGM330 - Hydraulic Motor can be changed to 48cc/rev or 24cc/rev if required

WATER PUMP KIT (WATER INLET & OUTLET) SOLD SEPARATELY INCLUDES

80mm (3) Roll Grooved Nipple (080NRGST)
80mm (3) Roll Grooved Coupling (080RGCGS)
100mm (4) Roll Grooved Nipple (100NRGST)
100mm (4) Roll Grooved Coupling (100RGCGS)

SHIPPING

Dimensions: 0.45m (w) x 0.55m (l) x 0.54m (h)
Weight: 88kg
Cubic: 0.13365m3

WATER PUMP FITTINGS KIT AVAILABLE:

80mm (3) Roll Grooved Nipple (080NRGST)
80mm (3) Roll Grooved Coupling (080RGCGS)
100mm (4) Roll Grooved Nipple (100NRGST)
100mm (4) Roll Grooved Coupling (100RGCGS)

WE ALSO RECOMMEND

Water Wise Water Trucks 40mm Pressure Relief Valve (040PRVBR)
Water Wise Water Trucks 80mm (3 inches) Butterfly Valve Spring Return - Air Actuated (080BSRSS)

(P100-080-ISO-CCW-HYD)

SKU	P100-080-ISO-CCW-HYD
Brand	Water Wise Truck Parts
Shipping Weight	88.0000kg

Others Also Bought

Pneumatic Controlled Joystick

Pneumatic Controlled Joystick

$182.30

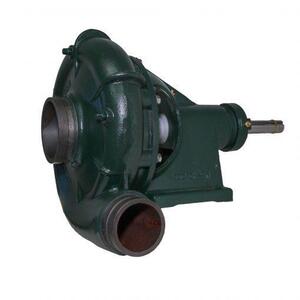

Water Wise B3 Bare Shaft Water Pump Mechanical Seal 100mm (4") x 80mm (3") - CW Rotation
